641828-1 | AMP

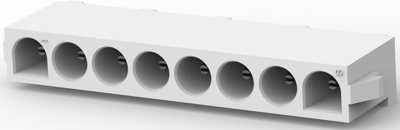

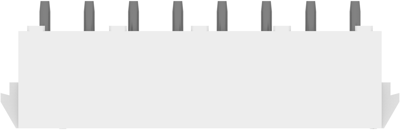

Pin header, 8 pole, pitch 6.35 mm, straight, white, 641828-1
Unit Price (€ / pc.)
1.0591 € *
Available in 5 Days: 40,491 pcs. - if ordered today
PCB Connection System, 641828-1, AMP
Wire-to-Board, Printed Circuit Board, Vertical, 8 Position
Technical Data
- Connector Mounting Type: Board Mount
- Contact Type: Male
- Housing Material: Nylon
- Housing Color: white
- Orientation: straight
- Number of positions: 8
- Operating Temperature Range: -40 – 105 °C [-40 – 221 °F]
- Rated current: 12 A
- Centerline (Pitch): 6.35 mm
- PCB Mount Retention: Without
- Sealable: No
- Contact Layout: Inline
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated current | 12 A | |
| Additional parts | equipped | |
| contact surface | pre-tinned | |
| Version | pin header | |
| Orientation | straight | |
| Connection plating | pre-tinned | |
| Grid | 6.35 mm | |
| Type of locking | Yes | |
| Number of rows | 1 | |
| Contact type | pin | |
| Colour | white | |
| Pin number | 8 pole | |
| Connection | solder pin | |
| Rated voltage | 600 V |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TW |
| Customs tariff number | 85366930 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
