641643-2 | AMP
Connector, 641643-2
Unit Price (€ / pc.)
0.1321 € *
Available in 5 Days: 11,614 pcs. - if ordered today

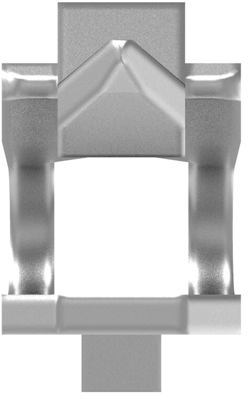

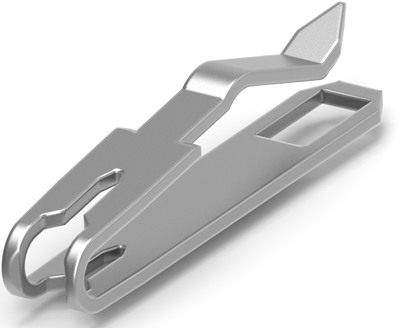

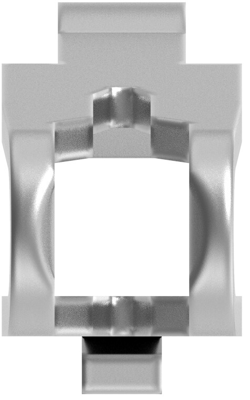

Connector assembly, 641643-2, AMP
The 641643-2 is a mount header connector that accepts discrete and ribbon cable wire size ranging from 22-28 AWG with maximum insulation outside diameter of 0.060 for terminating single wire.
Features
- One-step assembly
- No wire stripping
- No contact damage
- Reduced wiring errors
- Simpler tooling
- Simple maintenance and repair
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated voltage | 250 V | |
| Version | connector | |
| Rated current | 5 A | |
| Contact type | socket | |
| Connection | IDC connection | |
| Connection plating | tin-lead | |
| contact surface | tin-lead | |
| Additional parts | equipped |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85389099 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
