641239-4 | AMP

Socket header, 4 pole, pitch 2.54 mm, straight, blue, 641239-4

Order No.: 72P0623
EAN: 4099891737962
MPN:
641239-4
Series: MTA-100

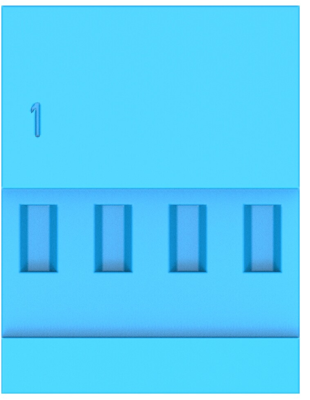

641239-4 AMP PCB Connection Systems Image 1

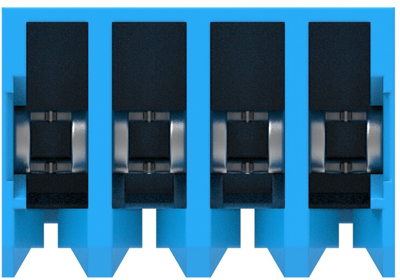

641239-4 AMP PCB Connection Systems Image 2

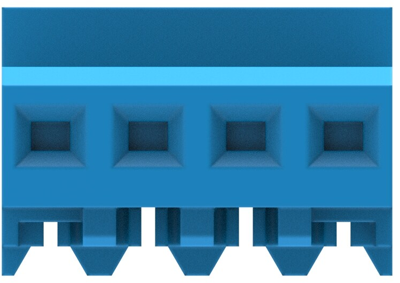

641239-4 AMP PCB Connection Systems Image 3

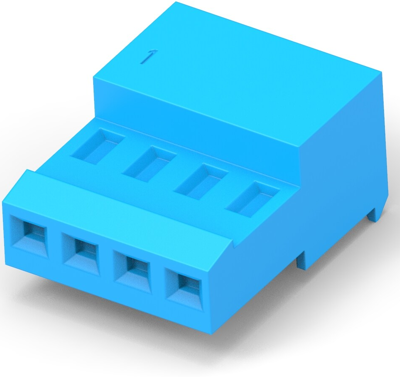

641239-4 AMP PCB Connection Systems Image 4
641239-4 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
1.9992 € *
Available in 5 Days: 2,629 pcs. - if ordered today
Total Price:
10.00 € *
Price list
Quantity
Price per unit*
5 pcs.
1.9992 €
10 pcs.
1.8564 €
25 pcs.
1.7255 €
50 pcs.
1.5589 €
*incl. VAT plus shipping costs
Subject to prior sale

Connector assembly, 641239-4, AMP

The 641239-4 is a mount header connector that accepts discrete and ribbon cable wire size ranging from 22-28 AWG with maximum insulation outside diameter of 0.060 for terminating single wire.

Features

  • One-step assembly
  • No wire stripping
  • No contact damage
  • Reduced wiring errors
  • Simpler tooling
  • Simple maintenance and repair
Technical specifications
Filter Property Value
Grid 2.54 mm
Contact type socket
Connection plating tin-plated
contact surface gold-plated
Version socket header
Rated current 5 A
Rated voltage 250 V
Orientation straight
Type of locking Yes
Additional parts equipped
Number of rows 1
Colour blue
Pin number 4 pole
Connection IDC connection
Logistics
Property Value
Country of origin US
Customs tariff number 85366990
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
