641215-8 | AMP

Pin header, 8 pole, pitch 2.54 mm, straight, natural, 641215-8

Order No.: 72P0621
EAN: 4099891737948
MPN:
641215-8
Series: MTA-100

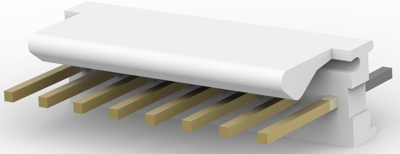

641215-8 AMP PCB Connection Systems Image 1

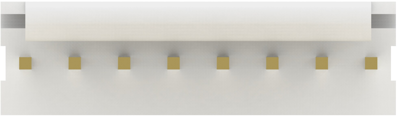

641215-8 AMP PCB Connection Systems Image 2

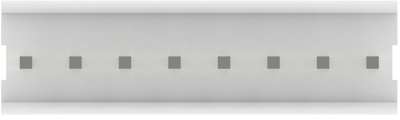

641215-8 AMP PCB Connection Systems Image 3

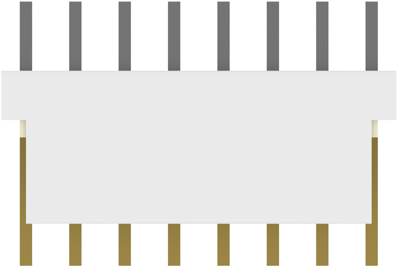

641215-8 AMP PCB Connection Systems Image 4
641215-8 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
1.9040 € *
Available in 5 Days: 2,601 pcs. - if ordered today
Total Price:
9.52 € *
Price list
Quantity
Price per unit*
5 pcs.
1.9040 €
10 pcs.
1.7612 €
25 pcs.
1.6422 €
50 pcs.
1.4875 €
*incl. VAT plus shipping costs
Subject to prior sale

Header assembly, 641215-8, AMP

The 641215-8 is a mount header connector that accepts discrete and ribbon cable wire size ranging from 22-28 AWG with maximum insulation outside diameter of 0.060 for terminating single wire.

Features

  • One-step assembly
  • No wire stripping
  • No contact damage
  • Reduced wiring errors
  • Simpler tooling
  • Simple maintenance and repair
Technical specifications
Filter Property Value
Grid 2.54 mm
Contact type pin
Connection plating tin-plated
contact surface gold-plated
Version pin header
Rated current 5 A
Rated voltage 250 V
Orientation straight
Type of locking Yes
Additional parts equipped
Number of rows 1
Colour natural
Pin number 8 pole
Connection solder connection
Logistics
Property Value
Country of origin CN
Customs tariff number 85366990
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
