641213-3 | AMP

Pin header, 3 pole, pitch 2.54 mm, straight, natural, 641213-3

Order No.: 72P0620
EAN: 4099891737931
MPN:
641213-3
Series: MTA-100

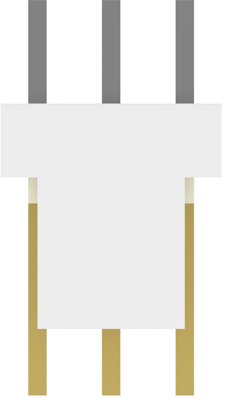

641213-3 AMP PCB Connection Systems Image 1

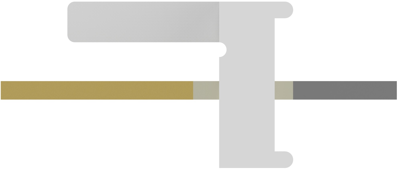

641213-3 AMP PCB Connection Systems Image 2

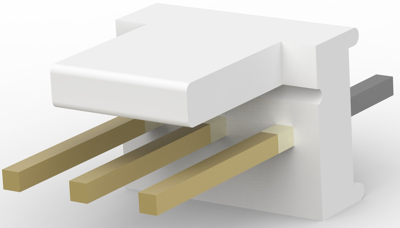

641213-3 AMP PCB Connection Systems Image 3

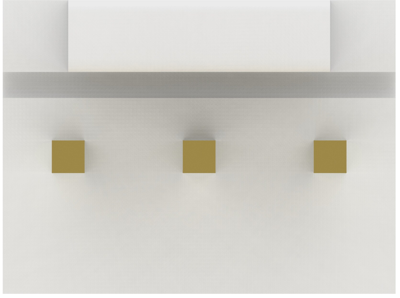

641213-3 AMP PCB Connection Systems Image 4

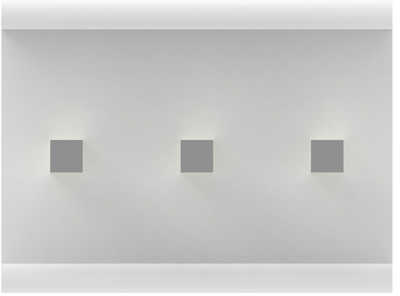

641213-3 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
0.7378 € *
Available in 5 Days: 4,227 pcs. - if ordered today
Total Price:
221.34 € *
Price list
Quantity
Price per unit*
300 pcs.
0.7378 €
1300 pcs.
0.7140 €
*incl. VAT plus shipping costs
Subject to prior sale

Header assembly, 641213-3, AMP

The 641213-3 is a mount header connector that accepts discrete and ribbon cable wire size ranging from 22-28 AWG with maximum insulation outside diameter of 0.060 for terminating single wire.

Features

  • One-step assembly
  • No wire stripping
  • No contact damage
  • Reduced wiring errors
  • Simpler tooling
  • Simple maintenance and repair
Technical specifications
Colour natural
contact surface gold-plated
Rated current 5 A
Grid 2.54 mm
Connection plating tin-plated
Pin number 3 pole
Version pin header
Additional parts equipped
Orientation straight
Connection solder connection
Contact type pin
Rated voltage 250 V
Number of rows 1
Logistics
Country of origin US
Customs tariff number 85366990
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
