640900-3 | AMP
Pin header, 5 pole, pitch 6.35 mm, straight, natural, 640900-3
Unit Price (€ / pc.)
5.3312 € *
Available in 5 Days: 4,348 pcs. - if ordered today
Total Price:
5.33 € *
Price list
Quantity
Price per unit*
1 pcs.
5.3312 €
10 pcs.
4.7957 €
50 pcs.
4.4982 €
100 pcs.
4.2364 €
*incl. VAT plus shipping costs
Subject to prior sale

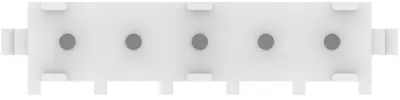

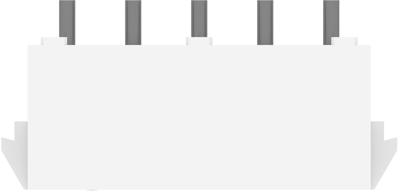

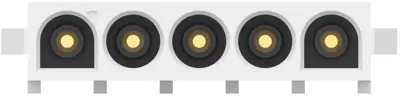

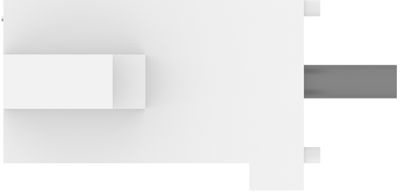

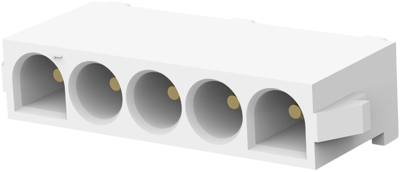

Pin header, 640900-3, AMP
PCB Mount Header, Vertical, Wire-to-Board, 5 Position, 6.35 mm Centerline, Fully Shrouded, Gold (Au).
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated current | 12 A | |
| contact surface | gold-plated | |
| Colour | natural | |
| Contact type | pin | |
| Connection plating | tin-plated | |
| Grid | 6.35 mm | |
| Orientation | straight | |
| Rated voltage | 600 V | |
| Connection | solder connection | |
| Pin number | 5 pole | |
| Version | pin header | |
| Type of locking | Yes | |
| Number of rows | 1 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366930 |
| Country of origin | US |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
