640457-7 | AMP

Pin header, 7 pole, pitch 2.54 mm, angled, natural, 640457-7

Order No.: 35P1762
EAN: 4099889927818
MPN:
640457-7
Series: MTA-100

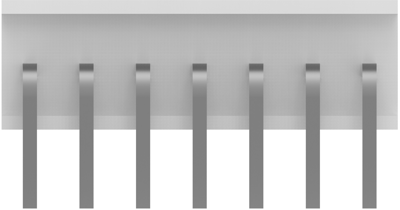

640457-7 AMP PCB Connection Systems Image 1

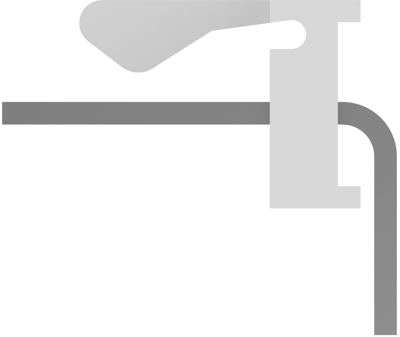

640457-7 AMP PCB Connection Systems Image 2

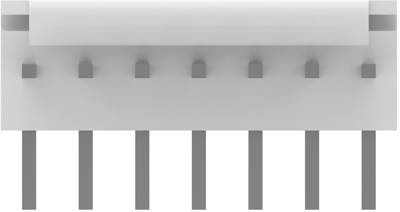

640457-7 AMP PCB Connection Systems Image 3

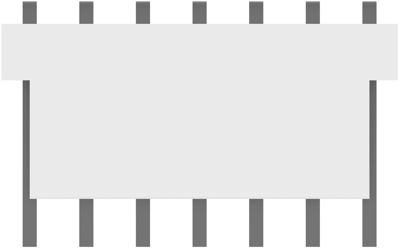

640457-7 AMP PCB Connection Systems Image 4

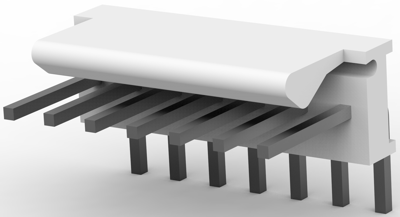

640457-7 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
0.7854 € *
Standard delivery time from the manufacturer is: 20 Weeks
Total Price:
0.79 € *
Price list
Quantity
Price per unit*
1 pcs.
0.7854 €
10 pcs.
0.6902 €
50 pcs.
0.6188 €
100 pcs.
0.5474 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB Connection System, 640457-7, AMP

Wire-to-Board, Printed Circuit Board, Unshrouded, Right Angle, 7 Position

Technical Data

  • Connector Mounting Type: Board Mount
  • Contact Base Material: Copper Alloy
  • Housing Material: Polyester - GF
  • Housing Color: natural
  • Orientation: angled
  • Number of positions: 7
  • Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
  • Rated current: 5 A
  • Centerline (Pitch): 2.54 mm
  • PCB Mount Retention: Without
  • Sealable: No
  • Contact Layout: Inline
Technical specifications
Colour natural
Type of locking Yes
contact surface tin-plated
Rated current 5 A
Grid 2.54 mm
Connection plating tin-plated
Pin number 7 pole
Version pin header
Additional parts equipped
Orientation angled
Connection solder pin
Contact type pin
Rated voltage 250 V
Number of rows 1
Logistics
Country of origin TH
Customs tariff number 85366930
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
