640457-3 | AMP

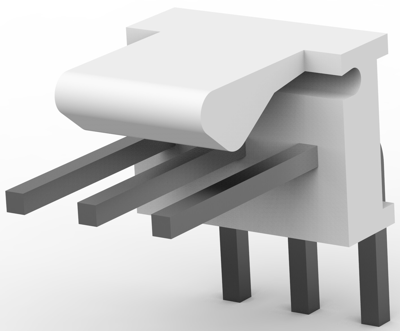

Pin header, 3 pole, pitch 2.54 mm, angled, natural, 640457-3
Unit Price (€ / pc.)
0.2404 € *
Available in 5 Days: 22,879 pcs. - if ordered today
Total Price:
1.20 € *
Price list
Quantity
Price per unit*
5 pcs.
0.2404 €
10 pcs.
0.2225 €
25 pcs.
0.2071 €
50 pcs.
0.1880 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB Connection System, 640457-3, AMP
Wire-to-Board, Printed Circuit Board, Unshrouded, Right Angle, 3 Position
Technical Data
- Connector Mounting Type: Board Mount
- Contact Type: Male
- Contact Base Material: Copper Alloy
- Housing Material: Polyester - GF
- Housing Color: natural
- Orientation: angled
- Number of positions: 3
- Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
- Rated current: 5 A
- Centerline (Pitch): 2.54 mm
- PCB Mount Retention: Without
- Sealable: No
- Contact Layout: Inline
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated current | 5 A | |
| Rated voltage | 250 V | |
| Version | pin header | |
| Number of rows | 1 | |
| Orientation | angled | |
| Additional parts | equipped | |
| contact surface | tin-plated | |
| Pin number | 3 pole | |
| Grid | 2.54 mm | |
| Type of locking | Yes | |
| Contact type | pin | |
| Colour | natural | |
| Connection plating | tin-plated | |
| Connection | solder pin |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TH |
| Customs tariff number | 85366930 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
