640456-3 | AMP

Pin header, 3 pole, pitch 2.54 mm, straight, natural, 640456-3

Order No.: 35P1634
EAN: 4099889926798
MPN:
640456-3
Series: MTA-100

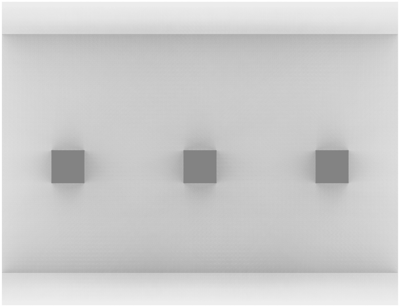

640456-3 AMP PCB Connection Systems Image 1

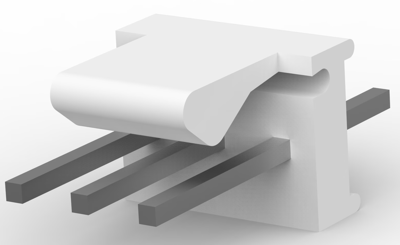

640456-3 AMP PCB Connection Systems Image 2

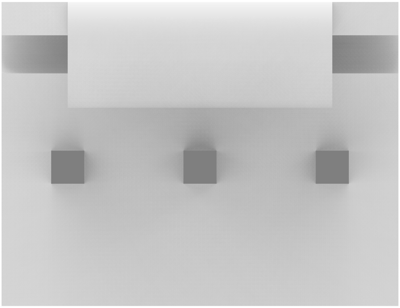

640456-3 AMP PCB Connection Systems Image 3

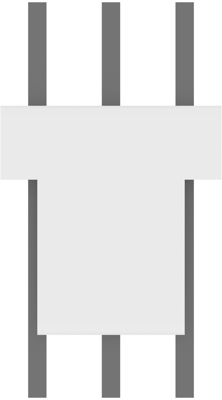

640456-3 AMP PCB Connection Systems Image 4
640456-3 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
0.2654 € *
Available: 180 pcs.
Available in 5 Days: 56,470 pcs. - if ordered today
Total Price:
0.53 € *
Price list
Quantity
Price per unit*
2 pcs.
0.2654 €
10 pcs.
0.2332 €
50 pcs.
0.1975 €
100 pcs.
0.1618 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB Connection System, 640456-3, AMP

Wire-to-Board, Printed Circuit Board, Unshrouded, Vertical, 3 Position

Technical Data

  • Connector Mounting Type: Board Mount
  • Contact Type: Male
  • Contact Base Material: Copper Alloy
  • Housing Material: Polyester - GF
  • Housing Color: natural
  • Orientation: straight
  • Number of positions: 3
  • Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
  • Rated current: 5 A
  • Centerline (Pitch): 2.54 mm
  • PCB Mount Retention: Without
  • Sealable: No
  • Contact Layout: Inline
Technical specifications
Filter Property Value
Version pin header
Colour natural
Type of locking Yes
Pin number 3 pole
Additional parts equipped
Connection solder pin
Connection plating tin-plated
Rated voltage 250 V
Contact type pin
Rated current 5 A
contact surface tin-plated
Orientation straight
Grid 2.54 mm
Number of rows 1
Logistics
Property Value
Country of origin TH
Customs tariff number 85366990
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
