640456-2 | AMP

Pin header, 2 pole, pitch 2.54 mm, straight, natural, 640456-2

Order No.: 35P1599
EAN: 4099889926521
MPN:
640456-2
Series: MTA-100

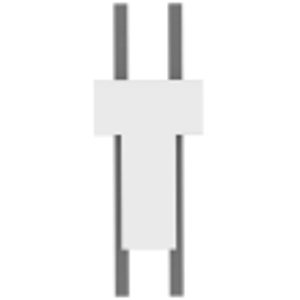

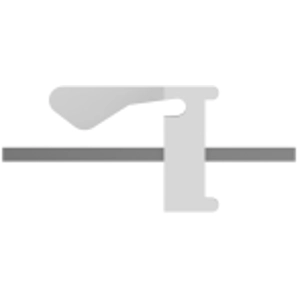

640456-2 AMP PCB Connection Systems Image 1
640456-2 AMP PCB Connection Systems Image 2
640456-2 AMP PCB Connection Systems Image 3
640456-2 AMP PCB Connection Systems Image 4
640456-2 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
0.1535 € *
Available: 3,897 pcs.
Available in 5 Days: 31,089 pcs. - if ordered today
Total Price:
15.35 € *
Price list
Quantity
Price per unit*
100 pcs.
0.1535 €
250 pcs.
0.1416 €
500 pcs.
0.1321 €
1000 pcs.
0.1190 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB Connection System, 640456-2, AMP

Wire-to-Board, Printed Circuit Board, Unshrouded, Vertical, 2 Position

Technical Data

  • Connector Mounting Type: Board Mount
  • Contact Type: Male
  • Contact Base Material: Copper Alloy
  • Housing Material: Polyester - GF
  • Housing Color: natural
  • Orientation: straight
  • Number of positions: 2
  • Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
  • Rated current: 5 A
  • Centerline (Pitch): 2.54 mm
  • PCB Mount Retention: Without
  • Sealable: No
  • Contact Layout: Inline
Technical specifications
Filter Property Value
Grid 2.54 mm
Contact type pin
Connection plating tin-plated
contact surface tin-plated
Version pin header
Rated current 5 A
Rated voltage 250 V
Orientation straight
Type of locking Yes
Additional parts equipped
Number of rows 1
Colour natural
Pin number 2 pole
Connection PCB connection
Logistics
Property Value
Country of origin TH
Customs tariff number 85366930
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
