640452-8 | AMP

Pin header, 8 pole, pitch 2.54 mm, straight, natural, 640452-8

Order No.: 35P1778
EAN: 4099889927962
MPN:
640452-8
Series: MTA-100

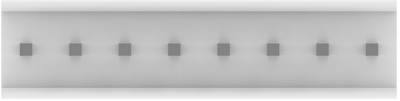

640452-8 AMP PCB Connection Systems Image 1

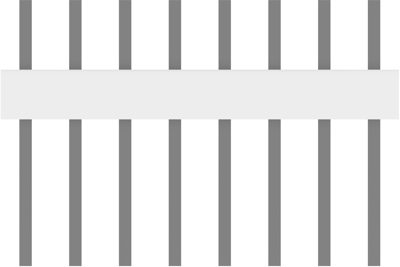

640452-8 AMP PCB Connection Systems Image 2

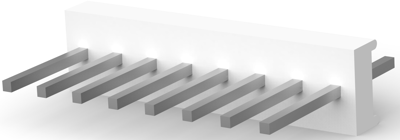

640452-8 AMP PCB Connection Systems Image 3

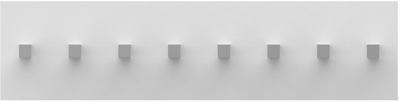

640452-8 AMP PCB Connection Systems Image 4

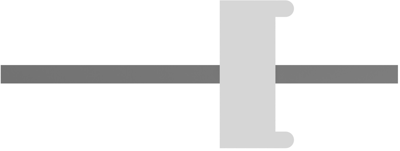

640452-8 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
1.6065 € *
Available in 5 Days: 2,709 pcs. - if ordered today
Total Price:
1.61 € *
Price list
Quantity
Price per unit*
1 pcs.
1.6065 €
10 pcs.
1.4637 €
50 pcs.
1.3090 €
100 pcs.
1.1781 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB Connection System, 640452-8, AMP

Wire-to-Board, Printed Circuit Board, Unshrouded, Vertical, 8 Position

Technical Data

  • Connector Mounting Type: Board Mount
  • Contact Type: Male
  • Contact Base Material: Copper Alloy
  • Housing Material: Polyester - GF
  • Housing Color: natural
  • Orientation: straight
  • Number of positions: 8
  • Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
  • Rated current: 5 A
  • Centerline (Pitch): 2.54 mm
  • PCB Mount Retention: Without
  • Sealable: No
  • Contact Layout: Inline
Technical specifications
Colour natural
contact surface tin-plated
Rated current 5 A
Grid 2.54 mm
Connection plating tin-plated
Pin number 8 pole
Version pin header
Additional parts equipped
Orientation straight
Connection solder pin
Contact type pin
Rated voltage 250 V
Number of rows 1
Logistics
Country of origin IN
Customs tariff number 85366930
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
