640452-2 | AMP

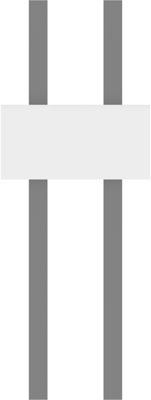

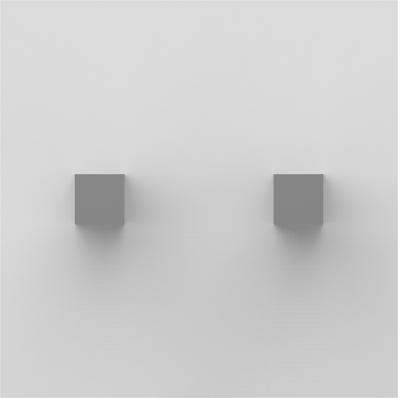

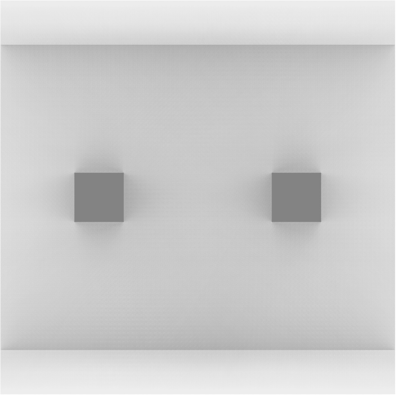

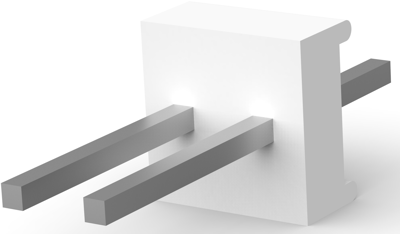

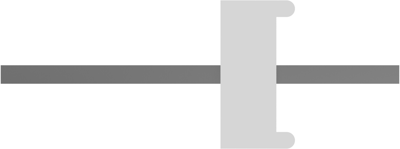

Pin header, 2 pole, pitch 2.54 mm, straight, natural, 640452-2
Unit Price (€ / pc.)
0.5355 € *
Available in 5 Days: 1,637 pcs. - if ordered today
PCB Connection System, 640452-2, AMP
Wire-to-Board, Printed Circuit Board, Unshrouded, Vertical, 2 Position
Technical Data
- Connector Mounting Type: Board Mount
- Contact Type: Male
- Contact Base Material: Copper Alloy
- Housing Material: Polyester - GF
- Housing Color: natural
- Orientation: straight
- Number of positions: 2
- Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
- Rated current: 5 A
- Centerline (Pitch): 2.54 mm
- PCB Mount Retention: Without
- Sealable: No
- Contact Layout: Inline
Technical specifications
| Number of rows | 1 | |
| Rated voltage | 250 V | |
| Contact type | pin | |
| Connection | solder pin | |
| contact surface | tin-plated | |
| Pin number | 2 pole | |
| Grid | 2.54 mm | |
| Connection plating | tin-plated | |
| Orientation | straight | |
| Additional parts | equipped | |
| Colour | natural | |
| Version | pin header | |
| Rated current | 5 A |
Download
Logistics
| Country of origin | IN |
| Customs tariff number | 85366930 |
Compliance
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
