640445-7 | AMP

Pin header, 7 pole, pitch 3.96 mm, straight, natural, 640445-7

Order No.: 35P1055
EAN: 4099889921915
MPN:
640445-7
Series: MTA-156

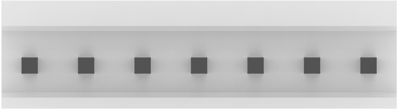

640445-7 AMP PCB Connection Systems Image 1

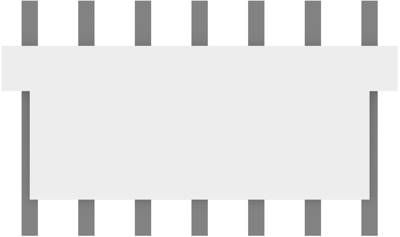

640445-7 AMP PCB Connection Systems Image 2

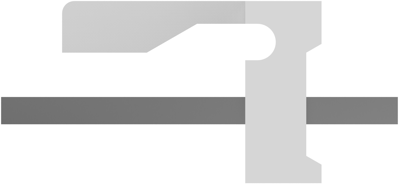

640445-7 AMP PCB Connection Systems Image 3

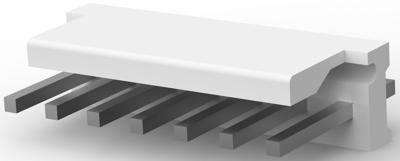

640445-7 AMP PCB Connection Systems Image 4

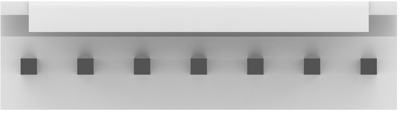

640445-7 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
1.0234 € *
Available in 5 Days: 4,932 pcs. - if ordered today
Total Price:
1.02 € *
Price list
Quantity
Price per unit*
1 pcs.
1.0234 €
10 pcs.
0.9282 €
50 pcs.
0.8330 €
100 pcs.
0.7497 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB Connection System, 640445-7, AMP

Wire-to-Board, Printed Circuit Board, Unshrouded, Vertical, 7 Position

Technical Data

  • Connector Mounting Type: Board Mount
  • Contact Type: Tab
  • Contact Base Material: Copper Alloy
  • Housing Material: Polyester
  • Housing Color: natural
  • Orientation: straight
  • Number of positions: 7
  • Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
  • Rated current: 7 A
  • Centerline (Pitch): 3.96 mm
  • PCB Mount Retention: Without
  • Sealable: No
  • Contact Layout: Inline
Technical specifications
Filter Property Value
Pin number 7 pole
Connection plating tin-plated
Number of rows 1
Version pin header
Additional parts equipped
Grid 3.96 mm
contact surface tin-plated
Rated voltage 600 V
Colour natural
Rated current 7 A
Type of locking Yes
Connection solder pin
Contact type pin
Orientation straight
Logistics
Property Value
Customs tariff number 85366930
Country of origin IN
Compliance
Property Value
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free Yes
