640445-4 | AMP

Pin header, 4 pole, pitch 3.96 mm, straight, natural, 640445-4

Order No.: 35P1002
EAN: 4099889921427
MPN:
640445-4
Series: MTA-156

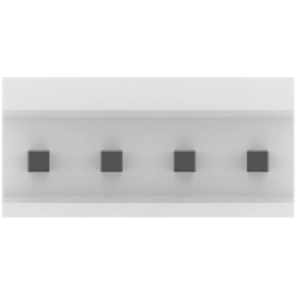

640445-4 AMP PCB Connection Systems Image 1
640445-4 AMP PCB Connection Systems Image 2
640445-4 AMP PCB Connection Systems Image 3
640445-4 AMP PCB Connection Systems Image 4
640445-4 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
0.3213 € *
Available: 164 pcs.
Available in 5 Days: 6,250 pcs. - if ordered today
Total Price:
0.64 € *
Price list
Quantity
Price per unit*
2 pcs.
0.3213 €
10 pcs.
0.2844 €
50 pcs.
0.2499 €
100 pcs.
0.2202 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB Connection System, 640445-4, AMP

Wire-to-Board, Printed Circuit Board, Unshrouded, Vertical, 4 Position

Technical Data

  • Connector Mounting Type: Board Mount
  • Contact Type: Male
  • Contact Base Material: Copper Alloy
  • Housing Material: Polyester
  • Housing Color: natural
  • Orientation: straight
  • Number of positions: 4
  • Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
  • Rated current: 7 A
  • Centerline (Pitch): 3.96 mm
  • PCB Mount Retention: Without
  • Sealable: No
  • Contact Layout: Inline
Technical specifications
Colour natural
Type of locking Yes
contact surface tin-plated
Rated current 7 A
Grid 3.96 mm
Connection plating tin-plated
Pin number 4 pole
Version pin header
Additional parts equipped
Orientation straight
Connection PCB connection
Contact type pin
Rated voltage 600 V
Number of rows 1
Logistics
Country of origin IN
Customs tariff number 85366930
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
