640384-4 | AMP

Pin header, 4 pole, pitch 3.96 mm, straight, natural, 640384-4

Order No.: 72P0612
EAN: 4099891737887
MPN:
640384-4
Series: MTA-156

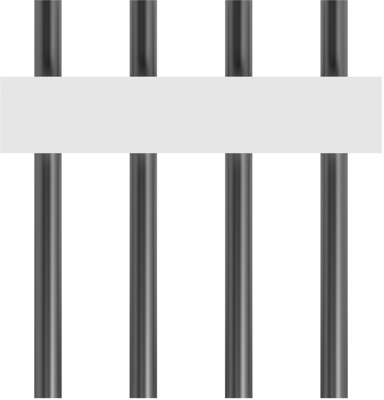

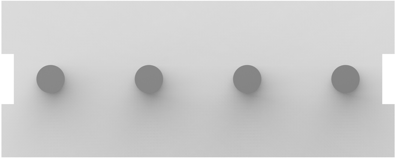

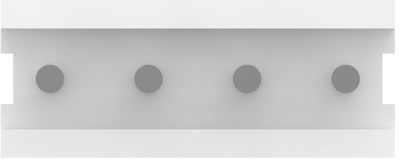

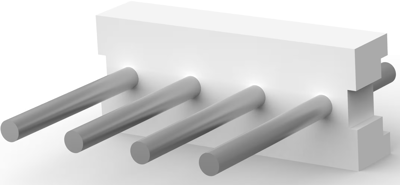

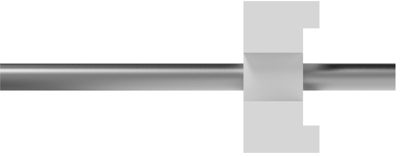

640384-4 AMP PCB Connection Systems Image 1
640384-4 AMP PCB Connection Systems Image 2
640384-4 AMP PCB Connection Systems Image 3
640384-4 AMP PCB Connection Systems Image 4
640384-4 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
0.2773 € *
Available in 5 Days: 18,353 pcs. - if ordered today
Total Price:
166.36 € *
*incl. VAT plus shipping costs
Subject to prior sale
600 pcs.
0.2773 €

Power connector, 640384-4, AMP

Rectangular power connector, Header, Plug, Wire-to-Board, 4 Position, 3.96 mm Centerline, Printed circuit board, UL 94V-0.

Technical specifications
Filter Property Value
Rated voltage 600 V
Additional parts equipped
contact surface tin-plated
Rated current 7 A
Grid 3.96 mm
Orientation straight
Version pin header
Connection plating tin-plated
Connection solder connection
Contact type pin
Type of locking No
Number of rows 1
Colour natural
Pin number 4 pole
Logistics
Property Value
Country of origin CN
Customs tariff number 85366990
Compliance
Property Value
SVHC free Yes
RoHS conform Yes
Date of RoHS guidelines 3/31/15
