6376042-2 | AMP

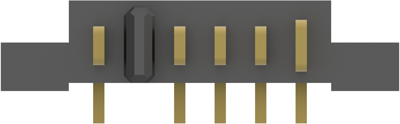

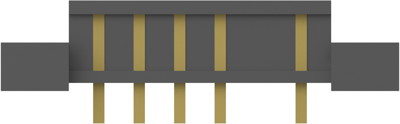

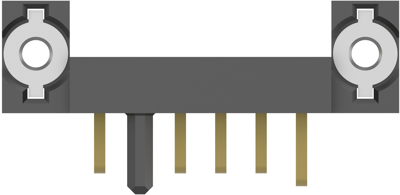

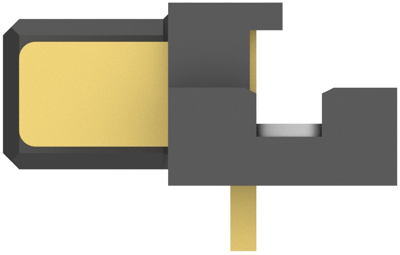

Pin header, 5 pole, pitch 2.5 mm, straight, black, 6376042-2
Order No.: 37P1588
EAN: 4099889953183
MPN:
6376042-2
Unit Price (€ / pc.)
11.4597 € *
Available in 5 Days: 5,700 pcs. - if ordered today
Total Price:
11.46 € *
Price list
Quantity
Price per unit*
1 pcs.
11.4597 €
10 pcs.
10.6505 €
25 pcs.
9.9365 €
50 pcs.
9.0321 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB Connection System, 6376042-2, AMP
Board-to-Board, Printed Circuit Board, Right Angle, 5 Position
Technical Data
- Connector Mounting Type: Board Mount
- Orientation: angled
- Number of positions: 5
- Operating Temperature Range: -20 – 80 °C [-4 – 176 °F]
- Rated current: 6 A
- Centerline (Pitch): 2.5 mm
- PCB Mount Retention: With
- Sealable: No
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 2.5 mm | |
| Contact type | pin | |
| contact surface | gold-plated | |
| Version | pin header | |
| Rated current | 6 A | |
| Rated voltage | 30 V | |
| Orientation | straight | |
| Type of locking | Yes | |
| Additional parts | equipped | |
| Number of rows | 1 | |
| Colour | black | |
| Pin number | 5 pole | |
| Connection | solder pin |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TW |
| Customs tariff number | 85366910 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
