6-928247-2 | AMP

Socket housing, 2 pole, pitch 5 mm, straight, natural, 6-928247-2

Order No.: 35P4175
EAN: 4099889932911
MPN:
6-928247-2
Series: RAST 5

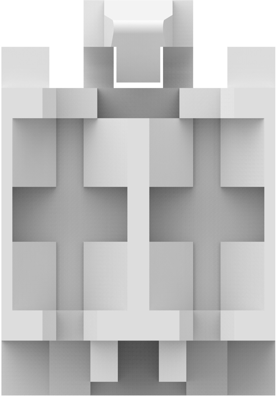

6-928247-2 AMP PCB Connection Systems Image 1

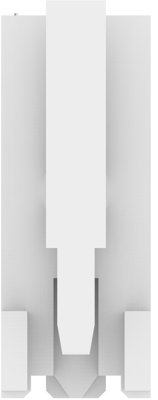

6-928247-2 AMP PCB Connection Systems Image 2

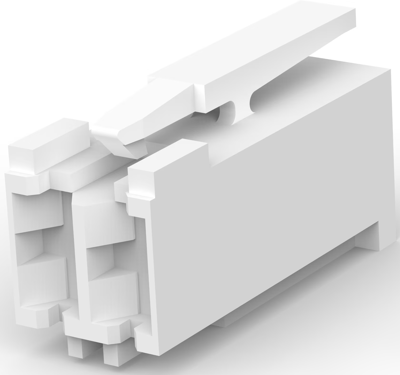

6-928247-2 AMP PCB Connection Systems Image 3

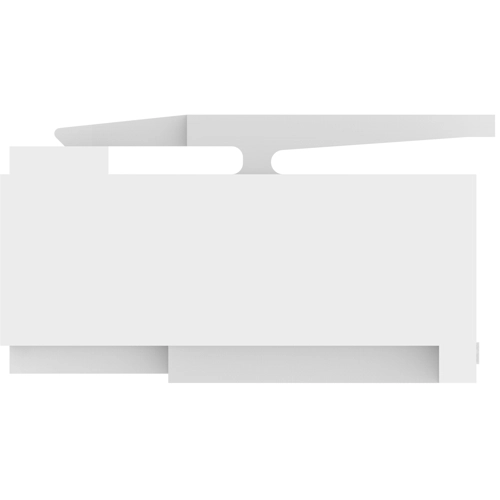

6-928247-2 AMP PCB Connection Systems Image 4

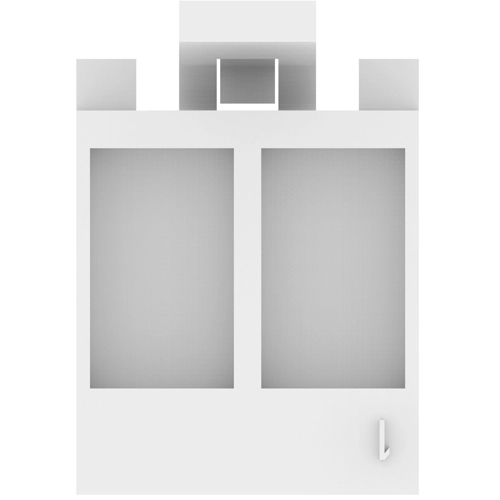

6-928247-2 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
0.3046 € *
Available in 5 Days: 28,861 pcs. - if ordered today
Total Price:
1.52 € *
*incl. VAT plus shipping costs
Subject to prior sale
5 pcs.
0.3046 €

PCB Connection System, 6-928247-2, AMP

Wire-to-Board, Wire & Cable, 2 Position

Technical Data

  • Connector Mounting Type: Cable Mount (Free-Hanging)
  • Housing Material: Nylon
  • Housing Color: natural
  • Number of positions: 2
  • Operating Temperature Range: -40 – 110 °C [-40 – 230 °F]
  • Centerline (Pitch): 5 mm
  • PCB Mount Retention: Without
  • Sealable: No
Technical specifications
Colour natural
Type of locking Yes
Rated current 6 A
Grid 5 mm
Pin number 2 pole
Version socket housing
Additional parts unequipped
Orientation straight
Connection crimp connection
Contact type socket
Number of rows 1
Logistics
Country of origin TW
Customs tariff number 85472000
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
