6-534206-3 | AMP

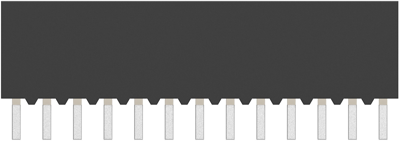

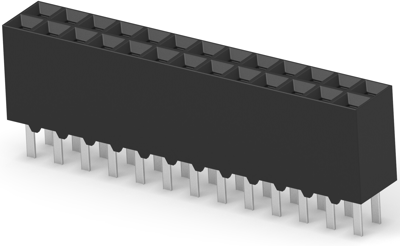

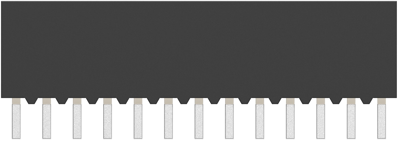

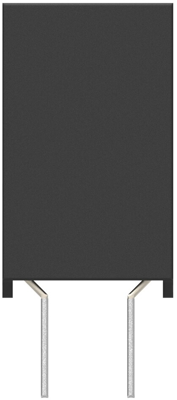

Socket header, 26 pole, pitch 2.54 mm, straight, black, 6-534206-3
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
4.6886 € *
Available in 12 Days: 4,930 pcs. - if ordered today
Total Price:
4.69 € *
Price list
Quantity
Price per unit*
1 pcs.
4.6886 €
10 pcs.
4.2007 €
50 pcs.
3.9389 €
100 pcs.
3.7009 €
*incl. VAT plus shipping costs
Subject to prior sale
Socket strip, 6-534206-3, AMP
PCB Mount Receptacle, Vertical, Board-to-Board, 26-Positions, 2.54 mm Centerline, Gold (Au), Through Hole - Solder.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | socket header | |
| Contact type | socket | |
| Pin number | 26 pole | |
| Grid | 2.54 mm | |
| Connection | solder pin | |
| Orientation | straight | |
| Type of locking | Yes | |
| contact surface | gold-plated | |
| Connection plating | tin-plated | |
| Rated voltage | 333 V | |
| Rated current | 2 A | |
| Additional parts | equipped | |
| Number of rows | 2 | |
| Colour | black |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366910 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
| Electrical equipment take-back |  |
