6-534206-2 | AMP

Socket header, 24 pole, pitch 2.54 mm, straight, black, 6-534206-2

Order No.: 37P6201
EAN: 4099889960303
MPN:
6-534206-2
Series: AMPMODU

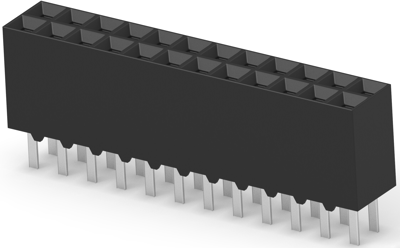

6-534206-2 AMP PCB Connection Systems Image 1

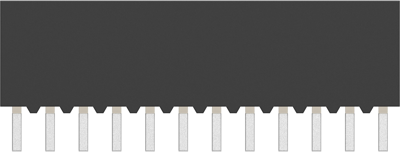

6-534206-2 AMP PCB Connection Systems Image 2

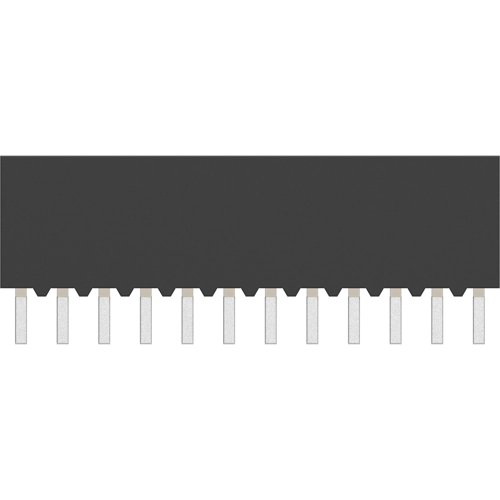

6-534206-2 AMP PCB Connection Systems Image 3
6-534206-2 AMP PCB Connection Systems Image 4
Image may differ
Unit Price (€ / pc.)
4.3554 € *
Standard delivery time from the manufacturer is: 21 Weeks
Total Price:
4,703.83 € *
*incl. VAT plus shipping costs
Subject to prior sale
1080 pcs.
4.3554 €

PCB Connection System, 6-534206-2, AMP

Board-to-Board, Printed Circuit Board, Vertical, 24 Position

Technical Data

  • Connector Mounting Type: Board Mount
  • Contact Type: Female
  • Contact Base Material: Phosphor Bronze
  • Housing Material: Polyester - GF
  • Housing Color: black
  • Orientation: straight
  • Number of positions: 24
  • Operating Temperature Range: -65 – 105 °C [-85 – 221 °F]
  • Insulation Resistance: 5000 MΩ
  • Centerline (Pitch): 2.54 mm
  • Row-to-Row Spacing: 2.54 mm [0.1 in]
  • PCB Mount Retention: Without
  • Sealable: No
Technical specifications
Colour black
Type of locking Yes
contact surface gold-plated
Rated current 2 A
Grid 2.54 mm
Connection plating tin-plated
Pin number 24 pole
Version socket header
Additional parts equipped
Orientation straight
Connection solder pin
Contact type socket
Rated voltage 333 V
Number of rows 2
Logistics
Country of origin CN
Customs tariff number 85366990
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
