6-440129-3 | AMP

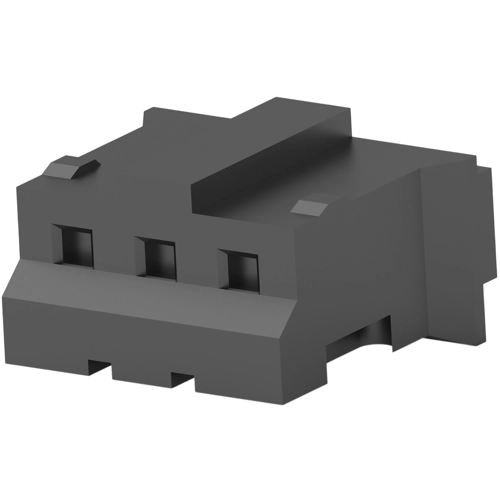

Socket housing, 3 pole, pitch 2 mm, straight, black, 6-440129-3

Order No.: 37P1037
EAN: 4099889951462
MPN:
6-440129-3
AMP

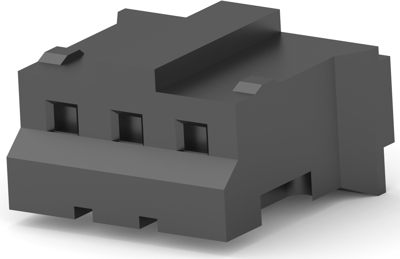

6-440129-3 AMP PCB Connection Systems Image 1

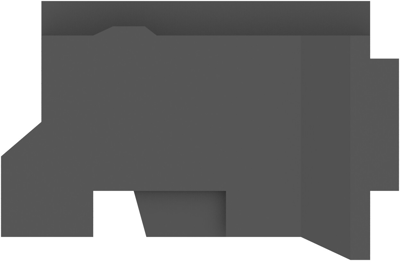

6-440129-3 AMP PCB Connection Systems Image 2

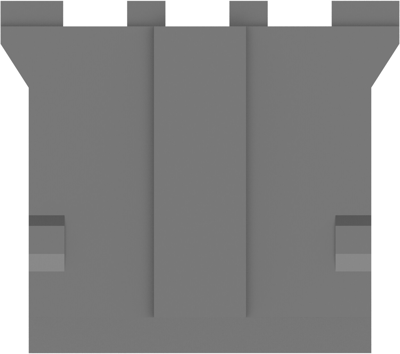

6-440129-3 AMP PCB Connection Systems Image 3

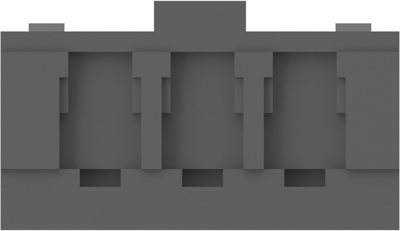

6-440129-3 AMP PCB Connection Systems Image 4

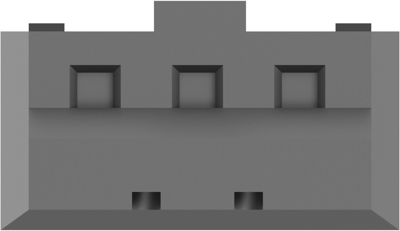

6-440129-3 AMP PCB Connection Systems Image 5
Image may differ
Print
Key Specification:
Version socket housing
Contact type socket
Pin number 3 pole
Grid 2 mm
Connection crimp connection

Ordering Information:

not to be sold to private customers
Download Datasheet Technical specifications
Unit Price (€ / pc.)
0.0298 € *
Available in 5 Days: 36,000 pcs. - if ordered today
Total Price:
155.77 € *
*incl. VAT plus shipping costs
Subject to prior sale
5236 pcs.
0.0298 €
Description
Technical specifications
Download
Logistics
Compliance

PCB Connection System, 6-440129-3, AMP

Wire-to-Board, Wire & Cable, 3 Position

Technical Data

  • Connector Mounting Type: Cable Mount (Free-Hanging)
  • Contact Type: Female
  • Contact Base Material: Copper Alloy
  • Housing Material: Thermoplastic
  • Housing Color: black
  • Number of positions: 3
  • Operating Temperature Range: -25 – 85 °C [-13 – 185 °F]
  • Insulation Resistance: 1000 MΩ
  • Centerline (Pitch): 2 mm
  • PCB Mount Retention: Without
  • Sealable: No
  • Contact Layout: Inline
Technical specifications
Version socket housing
Pin number 3 pole
Rated voltage 250 V
Orientation straight
Contact type socket
Grid 2 mm
Number of rows 1
Additional parts unequipped
Connection crimp connection
Rated current 3 A
Colour black
Articles of same specification 0
Logistics
Customs tariff number 85389011
Country of origin MX
Compliance
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free Yes
