6-292161-3 | AMP

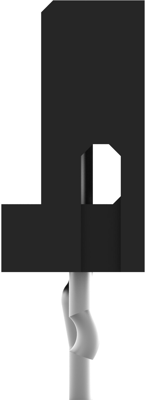

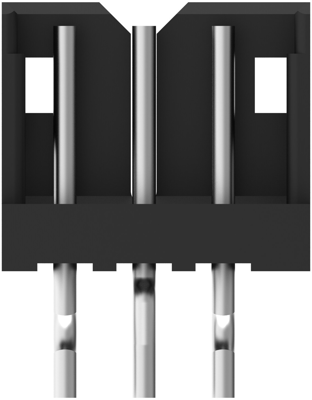

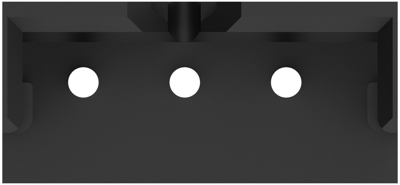

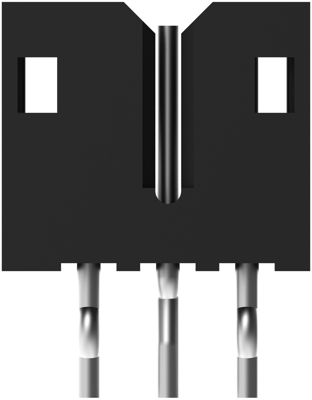

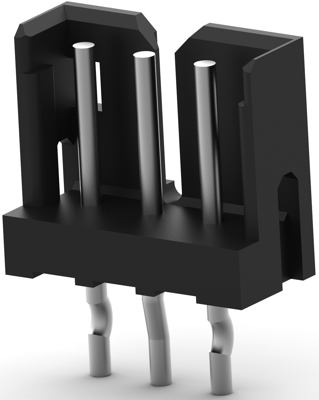

Pin header, 3 pole, pitch 2 mm, straight, black, 6-292161-3
Order No.: 36P7214
EAN: 4099889947960
MPN:
6-292161-3
Unit Price (€ / pc.)
0.2249 € *
Standard delivery time from the manufacturer is: 9 Weeks
PCB Connection System, 6-292161-3, AMP
Wire-to-Board, Printed Circuit Board, Partially Shrouded, Vertical, 3 Position
Technical Data
- Connector Mounting Type: Board Mount
- Contact Type: Male
- Contact Base Material: Brass
- Housing Material: Nylon 66
- Housing Color: black
- Orientation: straight
- Number of positions: 3
- Operating Temperature Range: -40 – 105 °C [-40 – 221 °F]
- Rated current: 4 A
- Centerline (Pitch): 2 mm
- PCB Mount Retention: With
- Sealable: No
- Contact Layout: Inline
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated current | 4 A | |
| contact surface | tin-plated | |
| Colour | black | |
| Additional parts | equipped | |
| Contact type | pin | |
| Connection plating | tin-plated | |
| Grid | 2 mm | |
| Orientation | straight | |
| Rated voltage | 125 V | |
| Connection | solder pin | |
| Pin number | 3 pole | |
| Version | pin header | |
| Type of locking | Yes | |
| Number of rows | 1 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366910 |
| Country of origin | MX |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
