6-104361-1 | AMP

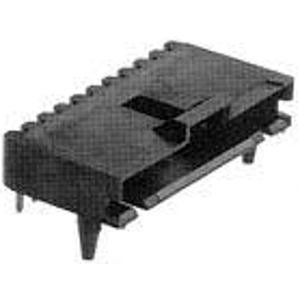

Pin header, 12 pole, pitch 2.54 mm, straight, black, 6-104361-1
Order No.: 37P6790
EAN: 4099889963021
MPN:
6-104361-1
Unit Price (€ / pc.)
3.5343 € *
Standard delivery time from the manufacturer is: 33 Weeks
PCB Connection System, 6-104361-1, AMP
Wire-to-Board, Printed Circuit Board, Shrouded, Right Angle, 12 Position
Technical Data
- Connector Mounting Type: Board Mount
- Contact Type: Male
- Contact Base Material: Brass
- Housing Material: Thermoplastic
- Housing Color: black
- Orientation: angled
- Number of positions: 12
- Operating Temperature Range: -65 – 105 °C [-85 – 221 °F]
- Insulation Resistance: 5000 MΩ
- Centerline (Pitch): 2.54 mm
- PCB Mount Retention: With
- Sealable: No
Technical specifications
| Connection plating | tin-plated | |
| Version | pin header | |
| Breakable | No | |
| contact surface | gold-plated | |
| Connection | solder pin | |
| Contact type | pin | |
| Additional parts | equipped | |
| Rated current | 3 A | |
| Pin number | 12 pole | |
| Colour | black | |
| Type of locking | Yes | |
| Orientation | straight | |
| Number of rows | 1 | |
| Grid | 2.54 mm |
Download
Logistics
| Country of origin | US |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
