6-103639-4 | AMP

Pin header, 15 pole, pitch 2.54 mm, straight, black, 6-103639-4

Order No.: 37P7049
EAN: 4099889964899
MPN:
6-103639-4
Series: AMPMODU

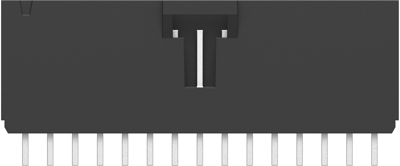

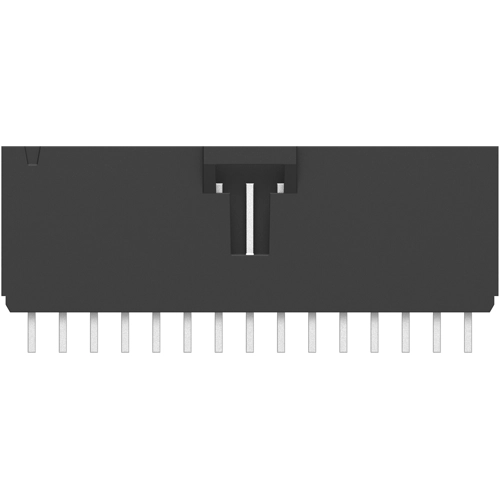

6-103639-4 AMP PCB Connection Systems Image 1

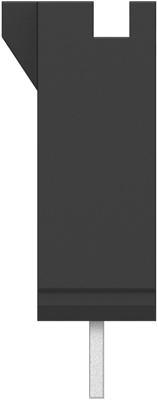

6-103639-4 AMP PCB Connection Systems Image 2

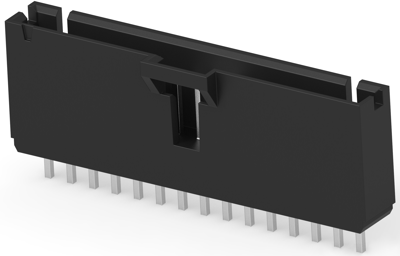

6-103639-4 AMP PCB Connection Systems Image 3

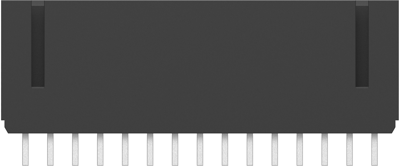

6-103639-4 AMP PCB Connection Systems Image 4

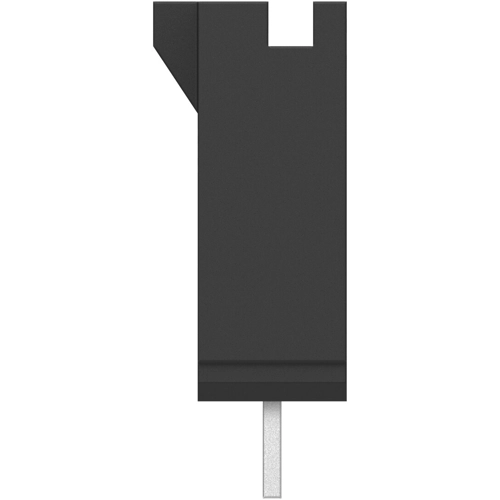

6-103639-4 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
2.2848 € *
Available in 5 Days: 4,108 pcs. - if ordered today
Total Price:
11.42 € *
Price list
Quantity
Price per unit*
5 pcs.
2.2848 €
10 pcs.
2.1182 €
25 pcs.
1.9754 €
50 pcs.
1.7850 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB Connection System, 6-103639-4, AMP

Wire-to-Board, Printed Circuit Board, Shrouded, Vertical, 15 Position

Technical Data

  • Connector Mounting Type: Board Mount
  • Contact Type: Male
  • Contact Base Material: Brass
  • Housing Material: Thermoplastic
  • Housing Color: black
  • Orientation: straight
  • Number of positions: 15
  • Operating Temperature Range: -65 – 105 °C [-85 – 221 °F]
  • Insulation Resistance: 5000 MΩ
  • Centerline (Pitch): 2.54 mm
  • PCB Mount Retention: Without
  • Sealable: No
Technical specifications
Filter Property Value
Grid 2.54 mm
Breakable No
Contact type pin
Connection plating tin-plated
contact surface tin-plated
Version pin header
Rated current 3 A
Orientation straight
Type of locking Yes
Additional parts equipped
Number of rows 1
Colour black
Pin number 15 pole
Connection solder pin
Logistics
Property Value
Country of origin CN
Customs tariff number 85366990
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
