5767056-2 | AMP

Pin header, 76 pole, pitch 0.64 mm, straight, black, 5767056-2

Order No.: 36P9344
EAN: 4099889949698
MPN:
5767056-2

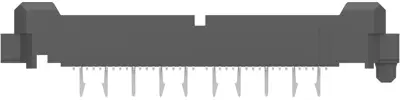

5767056-2 AMP PCB Connection Systems Image 1

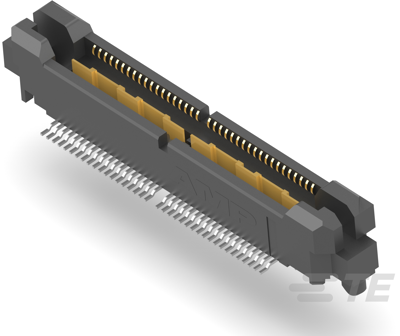

5767056-2 AMP PCB Connection Systems Image 2

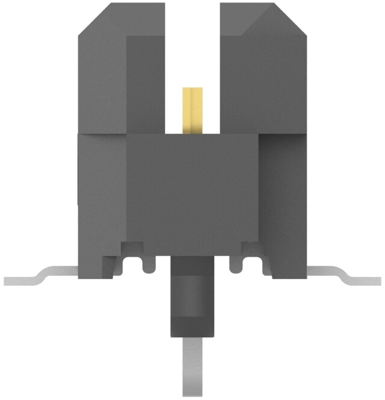

5767056-2 AMP PCB Connection Systems Image 3

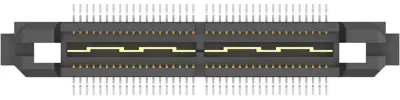

5767056-2 AMP PCB Connection Systems Image 4

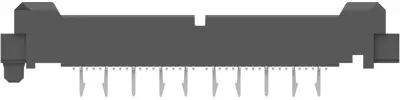

5767056-2 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
54.4068 € *
Available in 5 Days: 14 pcs. - if ordered today
Total Price:
761.70 € *
*incl. VAT plus shipping costs
Subject to prior sale
14 pcs.
54.4068 €

PCB Connection System, 5767056-2, AMP

Board-to-Board, Printed Circuit Board, Shrouded, Vertical, 76 Position

Technical Data

  • Connector Mounting Type: Board Mount
  • Contact Type: Male
  • Contact Base Material: Copper Alloy
  • Housing Material: Matte
  • Housing Color: black
  • Orientation: straight
  • Number of positions: 76
  • Operating Temperature Range: -55 – 125 °C [-67 – 257 °F]
  • Insulation Resistance: 2 MΩ
  • Centerline (Pitch): 0.64 mm
  • PCB Mount Retention: With
  • Sealable: No
  • Contact Layout: Inline
Technical specifications
Colour black
Breakable No
contact surface gold-plated
Rated current 11.5 A
Grid 0.64 mm
Connection plating tin-plated
Pin number 76 pole
Version pin header
Additional parts equipped
Orientation straight
Connection SMD
Contact type pin
Rated voltage 30 V
Number of rows 2
Logistics
Country of origin HU
Customs tariff number 85366930
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
