5767056-1 | AMP

Pin header, 38 pole, pitch 0.64 mm, straight, black, 5767056-1

Order No.: 36P9343
EAN: 4099889949681
MPN:
5767056-1

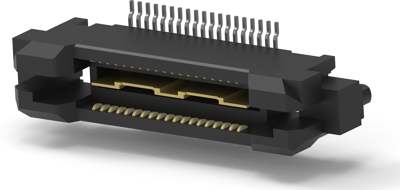

5767056-1 AMP PCB Connection Systems Image 1

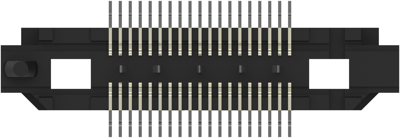

5767056-1 AMP PCB Connection Systems Image 2

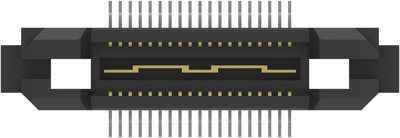

5767056-1 AMP PCB Connection Systems Image 3

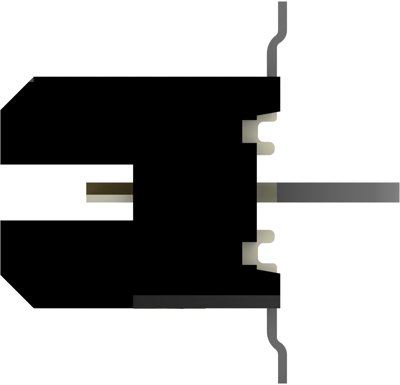

5767056-1 AMP PCB Connection Systems Image 4

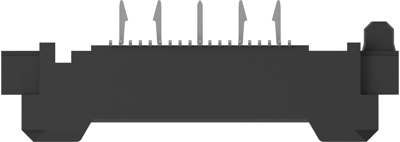

5767056-1 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
41.0907 € *
Standard delivery time from the manufacturer is: 10 Weeks
Total Price:
41.09 € *
Price list
Quantity
Price per unit*
1 pcs.
41.0907 €
10 pcs.
39.0320 €
25 pcs.
35.9142 €
50 pcs.
34.4743 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB Connection System, 5767056-1, AMP

Board-to-Board, Printed Circuit Board, Header Only, Vertical, 38 Position

Technical Data

  • Connector Mounting Type: Board Mount
  • Contact Type: Male
  • Contact Base Material: Copper Alloy
  • Housing Material: Matte
  • Housing Color: black
  • Orientation: straight
  • Number of positions: 38
  • Operating Temperature Range: -55 – 125 °C [-67 – 257 °F]
  • Insulation Resistance: 2 MΩ
  • Centerline (Pitch): 0.64 mm
  • Row-to-Row Spacing: 5.79 mm [0.227547 in]
  • PCB Mount Retention: With
  • Sealable: No
  • Contact Layout: Inline
Technical specifications
Colour black
Breakable No
contact surface gold-plated
Rated current 11.5 A
Grid 0.64 mm
Connection plating tin-plated
Pin number 38 pole
Version pin header
Additional parts equipped
Orientation straight
Connection SMD
Contact type pin
Rated voltage 30 V
Number of rows 2
Logistics
Country of origin HU
Customs tariff number 85366930
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
