5767054-3 | AMP

Socket header, 114 pole, pitch 0.64 mm, straight, black, 5767054-3

Order No.: 36P9391
EAN: 4099889949995
MPN:
5767054-3

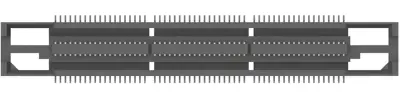

5767054-3 AMP PCB Connection Systems Image 1

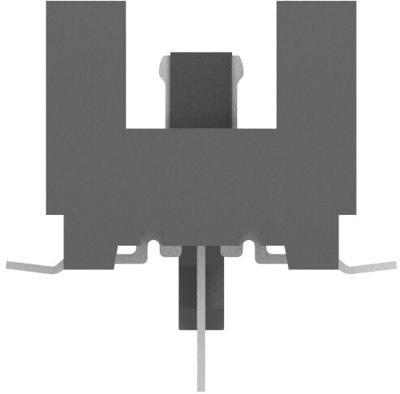

5767054-3 AMP PCB Connection Systems Image 2

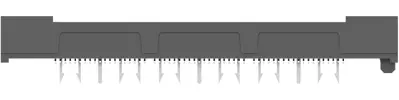

5767054-3 AMP PCB Connection Systems Image 3

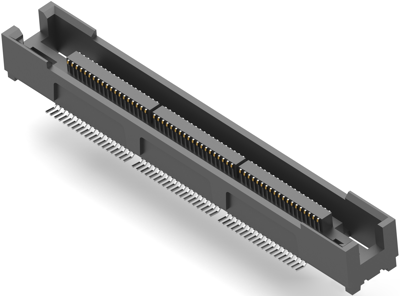

5767054-3 AMP PCB Connection Systems Image 4

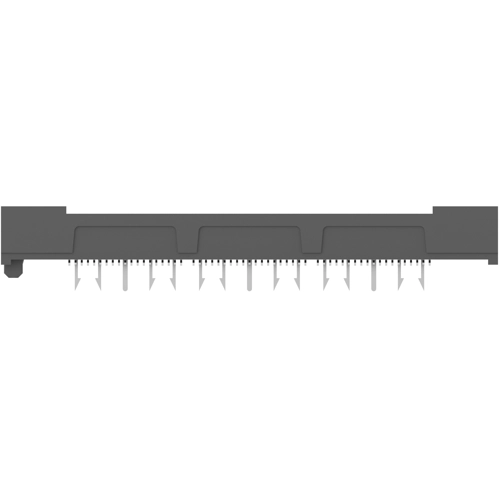

5767054-3 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
59.1787 € *
Standard delivery time from the manufacturer is: 10 Weeks
Total Price:
1,775.36 € *
*incl. VAT plus shipping costs
Subject to prior sale
30 pcs.
59.1787 €

PCB Connection System, 5767054-3, AMP

Board-to-Board, Printed Circuit Board, Shrouded, Vertical, 114 Position

Technical Data

  • Connector Mounting Type: Board Mount
  • Contact Type: Female
  • Contact Base Material: Copper Alloy
  • Housing Material: Matte
  • Housing Color: black
  • Orientation: straight
  • Number of positions: 114
  • Operating Temperature Range: -55 – 125 °C [-67 – 257 °F]
  • Insulation Resistance: 2 MΩ
  • Centerline (Pitch): 0.64 mm
  • PCB Mount Retention: With
  • Sealable: No
  • Contact Layout: Inline
Technical specifications
Colour black
Breakable No
contact surface tin-plated
Rated current 11.5 A
Grid 0.64 mm
Connection plating tin-plated
Pin number 114 pole
Version socket header
Additional parts equipped
Orientation straight
Connection SMD
Contact type socket
Rated voltage 30 V
Number of rows 2
Logistics
Country of origin HU
Customs tariff number 85366910
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
