5767007-8 | AMP

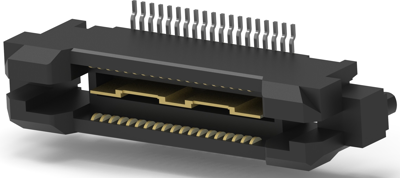

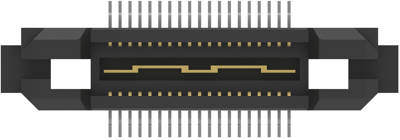

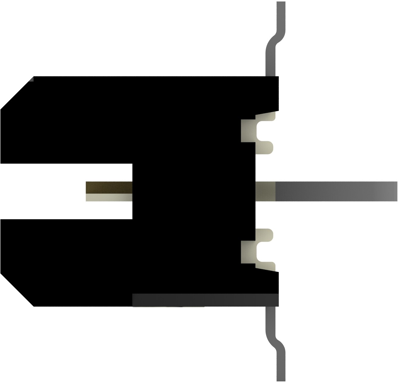

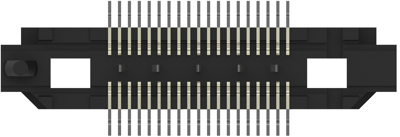

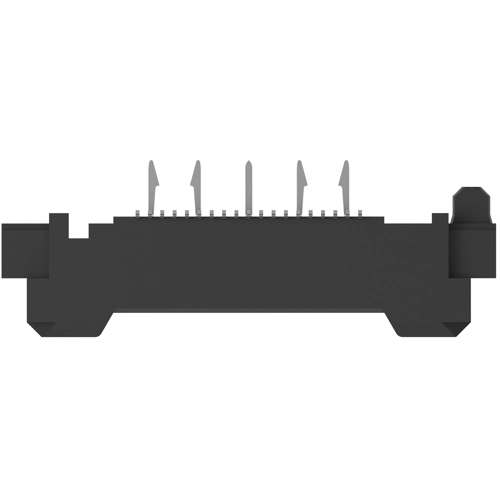

Pin header, 38 pole, pitch 0.64 mm, straight, black, 5767007-8
Order No.: 36P9350
EAN: 4099889949742
MPN:
5767007-8
Unit Price (€ / pc.)
22.5862 € *
Standard delivery time from the manufacturer is: 10 Weeks
Total Price:
22.59 € *
Price list
Quantity
Price per unit*
1 pcs.
22.5862 €
2 pcs.
21.1344 €
5 pcs.
19.8492 €
10 pcs.
18.4569 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB Connection System, 5767007-8, AMP
Board-to-Board, Printed Circuit Board, Header Only, Vertical, 38 Position
Technical Data
- Connector Mounting Type: Board Mount
- Contact Type: Tab
- Contact Base Material: Copper Alloy
- Housing Material: Matte
- Housing Color: black
- Orientation: straight
- Number of positions: 38
- Operating Temperature Range: -55 – 125 °C [-67 – 257 °F]
- Insulation Resistance: 2 MΩ
- Centerline (Pitch): 0.64 mm
- Row-to-Row Spacing: 5.79 mm [0.227547 in]
- PCB Mount Retention: With
- Sealable: No
- Contact Layout: Inline
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated current | 11.5 A | |
| contact surface | gold-plated | |
| Colour | black | |
| Additional parts | equipped | |
| Contact type | pin | |
| Connection plating | tin-plated | |
| Grid | 0.64 mm | |
| Orientation | straight | |
| Rated voltage | 30 V | |
| Connection | SMD | |
| Pin number | 38 pole | |
| Version | pin header | |
| Type of locking | Yes | |
| Number of rows | 2 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366930 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
