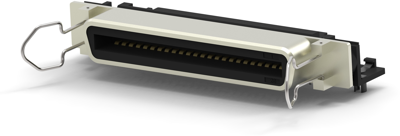

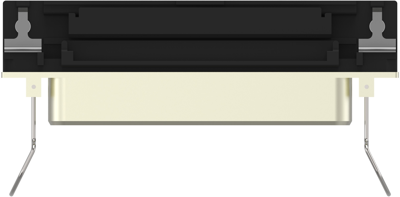

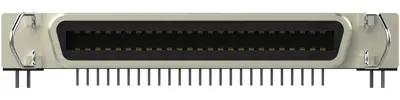

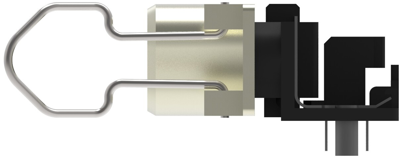

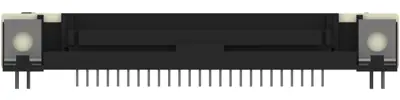

PCB D-Sub Connectors, 5555149-1, AMP
Grounded: Yes, Connector & Housing Type: Receptacle, Connector System: Cable-to-Board, Sealable: No, Connector & Contact Terminates To: Printed Circuit Board, Number of Positions: 50, Number of Rows: 2, PCB Mount Orientation: Right Angle, Preloaded: Yes, Shield Plating Finish: Bright, Connector Profile: Low, Shield Plating Material: Nickel over Copper, Contact Base Material: Copper Alloy, Contact Current Rating (Max): 3.5 A, Contact Mating Area Plating Thickness: , Termination Method to Printed Circuit Board: Through Hole - Solder, Panel Mount Feature: With, PCB Mount Retention: With, PCB Mount Retention Type: Boardlock, Mating Retention: With, Mating Retention Type: Bail Lock, Centerline (Pitch): 2.16 mm, Housing Color: Black, Row-to-Row Spacing: 4.3 mm, PCB Thickness (Recommended): 1.57 mm, Operating Temperature Range: -40 – 105 °C, Circuit Application: Signal, Packaging Quantity: 270, Comb Material: Polyester, Comment: Compatible with IBM PC AT and PC XT.,Maximum PC Board Thickness 1.57 .062,SCSI- Applicable.
