5499913-9 | AMP

Pin header, 40 pole, pitch 2.54 mm, straight, black, 5499913-9

Order No.: 36P5682
EAN: 4099889945256
MPN:
5499913-9
Series: AMP-LATCH

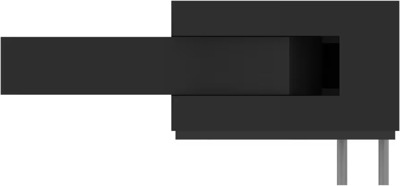

5499913-9 AMP PCB Connection Systems Image 1

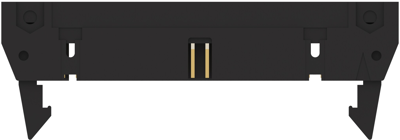

5499913-9 AMP PCB Connection Systems Image 2

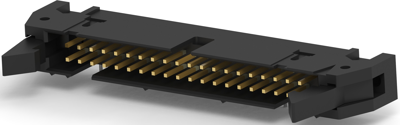

5499913-9 AMP PCB Connection Systems Image 3

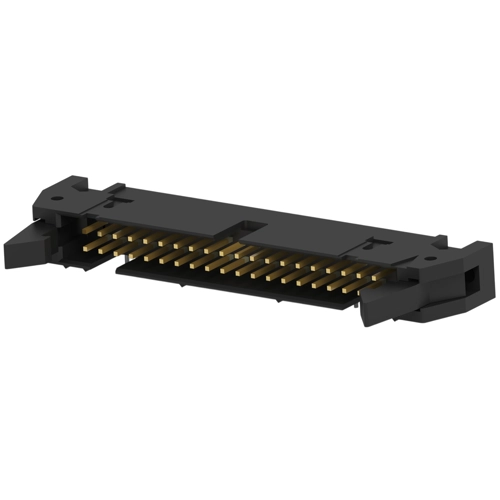

5499913-9 AMP PCB Connection Systems Image 4
5499913-9 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
2.3562 € *
Standard delivery time from the manufacturer is: 12 Weeks
Total Price:
678.59 € *
*incl. VAT plus shipping costs
Subject to prior sale
288 pcs.
2.3562 €

PCB Connection System, 5499913-9, AMP

Wire-to-Board, Printed Circuit Board, Right Angle, 40 Position

Technical Data

  • Connector Mounting Type: Board Mount
  • Contact Type: Male
  • Contact Base Material: Brass
  • Housing Material: Glass Filled Nylon/Polyester
  • Housing Color: black
  • Orientation: angled
  • Number of positions: 40
  • Operating Temperature Range: -65 – 105 °C [-85 – 221 °F]
  • Insulation Resistance: 5000 MΩ
  • Centerline (Pitch): 2.54 mm
  • Row-to-Row Spacing: 2.54 mm [0.1 in]
  • PCB Mount Retention: Without
Technical specifications
Colour black
Type of locking Yes
contact surface gold-plated
Rated current 1 A
Grid 2.54 mm
Connection plating tin-plated
Pin number 40 pole
Version pin header
Additional parts equipped
Orientation straight
Connection solder pin
Contact type pin
Rated voltage 250 V
Number of rows 2
Logistics
Country of origin HU
Customs tariff number 85366990
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
