5499913-6 | AMP

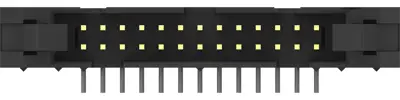

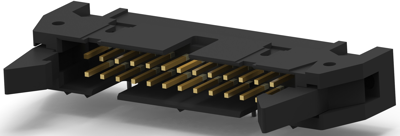

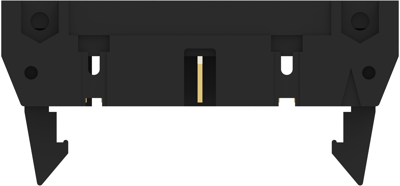

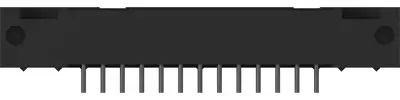

Pin header, 26 pole, pitch 2.54 mm, straight, black, 5499913-6
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
6.9972 € *
Available in 12 Days: 460 pcs. - if ordered today
Total Price:
7.00 € *
Price list
Quantity
Price per unit*
1 pcs.
6.9972 €
10 pcs.
6.2832 €
50 pcs.
5.8786 €
100 pcs.
5.5216 €
*incl. VAT plus shipping costs
Subject to prior sale
Pin header, 5499913-6, AMP
Wire-to-Board, 26-Positions, 2.54 mm Centerline, Right Angle, Through Hole - Solder.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | pin header | |
| Contact type | pin | |
| Pin number | 26 pole | |
| Grid | 2.54 mm | |
| Connection | solder pin | |
| Orientation | straight | |
| Type of locking | Yes | |
| contact surface | gold-plated | |
| Connection plating | tin-plated | |
| Rated voltage | 250 V | |
| Rated current | 1 A | |
| Additional parts | equipped | |
| Number of rows | 2 | |
| Colour | black |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | CZ |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
| Electrical equipment take-back |  |
