5499910-6 | AMP

Pin header, 26 pole, pitch 2.54 mm, straight, black, 5499910-6

Order No.: 36P5657
EAN: 4099889945003
MPN:
5499910-6
Series: AMP-LATCH

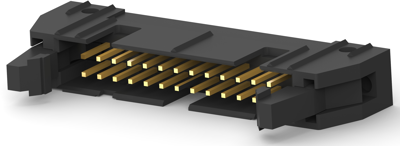

5499910-6 AMP PCB Connection Systems Image 1

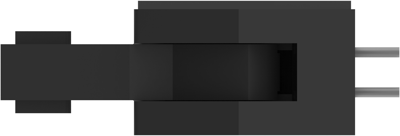

5499910-6 AMP PCB Connection Systems Image 2
5499910-6 AMP PCB Connection Systems Image 3
5499910-6 AMP PCB Connection Systems Image 4
5499910-6 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
9.6985 € *
Standard delivery time from the manufacturer is: 12 Weeks
Total Price:
9.70 € *
Price list
Quantity
Price per unit*
1 pcs.
9.6985 €
10 pcs.
8.9131 €
50 pcs.
8.0206 €
100 pcs.
7.2233 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB Connection System, 5499910-6, AMP

Wire-to-Board, Printed Circuit Board, Vertical, 26 Position

Technical Data

  • Connector Mounting Type: Board Mount
  • Contact Type: Male
  • Contact Base Material: Brass, Phosphor Bronze
  • Housing Material: Glass Filled Nylon/Polyester
  • Housing Color: black
  • Orientation: straight
  • Number of positions: 26
  • Operating Temperature Range: -65 – 105 °C [-85 – 221 °F]
  • Insulation Resistance: 5000 MΩ
  • Centerline (Pitch): 2.54 mm
  • Row-to-Row Spacing: 2.54 mm [0.1 in]
  • PCB Mount Retention: Without
Technical specifications
Colour black
Type of locking Yes
contact surface gold-plated
Rated current 1 A
Grid 2.54 mm
Connection plating tin-plated
Pin number 26 pole
Version pin header
Additional parts equipped
Orientation straight
Connection solder pin
Contact type pin
Rated voltage 250 V
Number of rows 2
Logistics
Country of origin US
Customs tariff number 85366990
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
