54483-3 | AMP

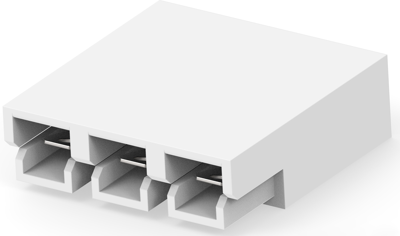

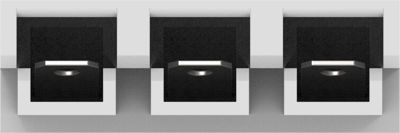

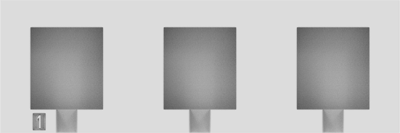

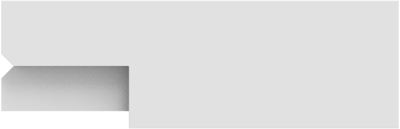

Socket header, 3 pole, pitch 7.92 mm, straight, natural, 54483-3
Order No.: 39P7917
EAN: 4099889979343
MPN:
54483-3
Unit Price (€ / pc.)
11.5787 € *
Available in 5 Days: 4,980 pcs. - if ordered today
Total Price:
11.58 € *
Price list
Quantity
Price per unit*
1 pcs.
11.5787 €
10 pcs.
10.7576 €
25 pcs.
10.0317 €
50 pcs.
9.1273 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB Connection System, 54483-3, AMP
Wire-to-Wire, Wire & Cable, 3 Position
Technical Data
- Connector Mounting Type: Panel Mount
- Housing Material: Nylon
- Number of positions: 3
- Operating Temperature Range: -40 – 75 °C [-40 – 167 °F]
- Rated current: 31 A
- Centerline (Pitch): 7.92 mm
- Sealable: No
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | natural | |
| Rated current | 31 A | |
| Grid | 7.92 mm | |
| Pin number | 3 pole | |
| Version | socket header | |
| Additional parts | unequipped | |
| Orientation | straight | |
| Connection | crimp connection | |
| Contact type | socket/pin | |
| Rated voltage | 600 V | |
| Number of rows | 1 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | IN |
| Customs tariff number | 85472000 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
