521205-1 | AMP

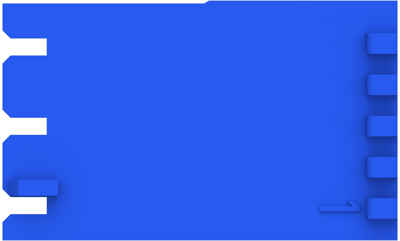

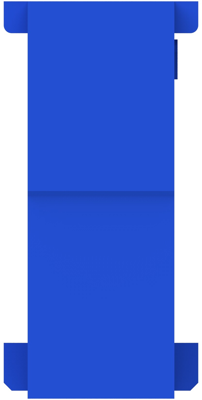

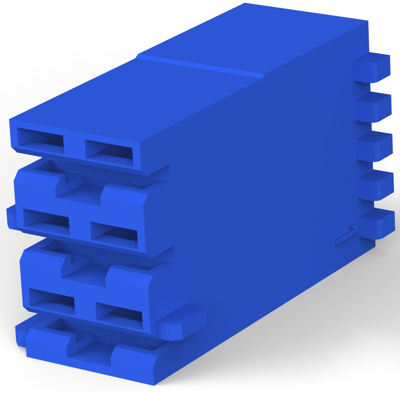

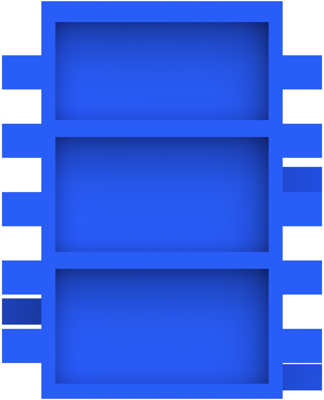

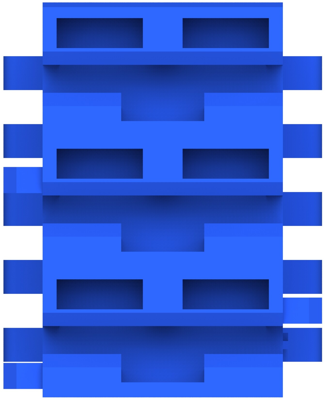

Socket housing, 3 pole, pitch 5 mm, straight, blue, 521205-1
Unit Price (€ / pc.)
0.9282 € *
Available in 5 Days: 8,688 pcs. - if ordered today
Total Price:
4.64 € *
Price list
Quantity
Price per unit*
5 pcs.
0.9282 €
10 pcs.
0.8568 €
25 pcs.
0.7973 €
50 pcs.
0.7259 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB Connection System, 521205-1, AMP
Wire-to-Board, Wire & Cable, 3 Position
Technical Data
- Connector Mounting Type: Cable Mount (Free-Hanging)
- Contact Type: Female
- Contact Base Material: Brass
- Housing Material: PA 6/66 Nylon
- Housing Color: blue
- Number of positions: 3
- Operating Temperature Range: -40 – 110 °C [-40 – 230 °F]
- Centerline (Pitch): 5 mm
- Row-to-Row Spacing: 5 mm [0.197 in]
- PCB Mount Retention: Without
- Sealable: No
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | socket housing | |
| Colour | blue | |
| Type of locking | Yes | |
| Pin number | 3 pole | |
| Additional parts | unequipped | |
| Connection | crimp connection | |
| Contact type | socket | |
| Orientation | straight | |
| Grid | 5 mm | |
| Number of rows | 1 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | JP |
| Customs tariff number | 85389091 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
