5179029-2 | AMP

Pin header, 60 pole, pitch 0.8 mm, straight, natural, 5179029-2

Order No.: 36P4731
EAN: 4099889940381
MPN:
5179029-2
Series: 0.8mm FH

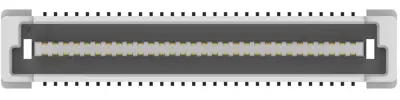

5179029-2 AMP PCB Connection Systems Image 1

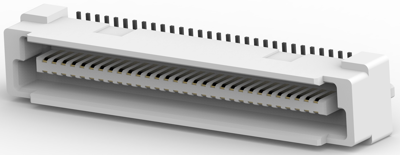

5179029-2 AMP PCB Connection Systems Image 2

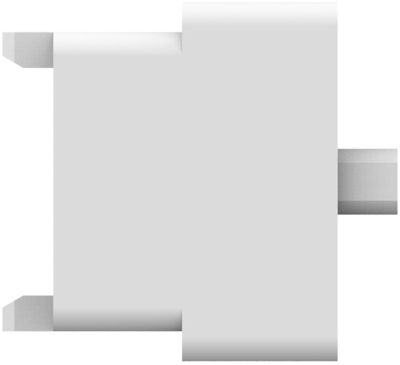

5179029-2 AMP PCB Connection Systems Image 3

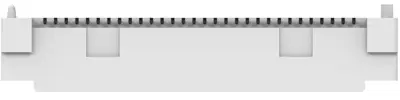

5179029-2 AMP PCB Connection Systems Image 4

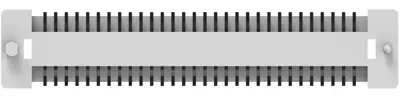

5179029-2 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
5.4740 € *
Available in 5 Days: 2,525 pcs. - if ordered today
Total Price:
5.47 € *
Price list
Quantity
Price per unit*
1 pcs.
5.4740 €
10 pcs.
5.0456 €
50 pcs.
4.5339 €
100 pcs.
4.0817 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB Connection System, 5179029-2, AMP

Board-to-Board, Printed Circuit Board, Vertical, 60 Position

Technical Data

  • Connector Mounting Type: Board Mount
  • Contact Type: Tab
  • Contact Base Material: Brass
  • Housing Material: Matte
  • Housing Color: natural
  • Orientation: straight
  • Number of positions: 60
  • Operating Temperature Range: -40 – 125 °C [-40 – 257 °F]
  • Insulation Resistance: 2 MΩ
  • Centerline (Pitch): 0.8 mm
  • PCB Mount Retention: Without
  • Sealable: No
  • Contact Layout: Inline
Technical specifications
Colour natural
contact surface gold-plated
Rated current 500 mA
Grid 0.8 mm
Connection plating tin-plated
Pin number 60 pole
Version pin header
Additional parts equipped
Orientation straight
Connection SMD
Contact type pin
Rated voltage 100 V
Number of rows 2
Logistics
Country of origin TW
Customs tariff number 85366930
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
