5177984-1 | AMP

Pin header, 40 pole, pitch 0.8 mm, straight, natural, 5177984-1

Order No.: 36P4708
EAN: 4099889940244
MPN:
5177984-1
Series: 0.8mm FH

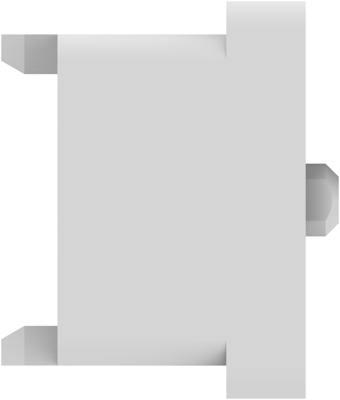

5177984-1 AMP PCB Connection Systems Image 1

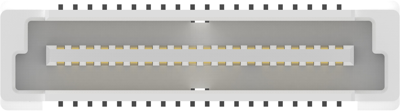

5177984-1 AMP PCB Connection Systems Image 2

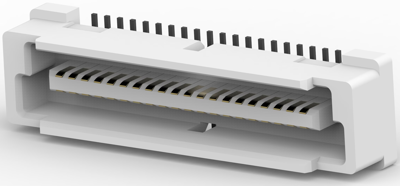

5177984-1 AMP PCB Connection Systems Image 3

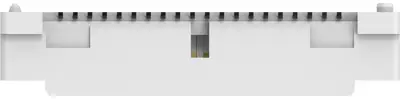

5177984-1 AMP PCB Connection Systems Image 4

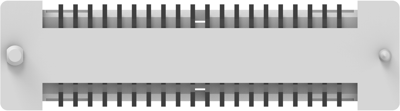

5177984-1 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
2.7727 € *
Available in 5 Days: 13,877 pcs. - if ordered today
Total Price:
2.77 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
2.7727 €

PCB Connection System, 5177984-1, AMP

Board-to-Board, Printed Circuit Board, Vertical, 40 Position

Technical Data

  • Connector Mounting Type: Board Mount
  • Contact Type: Tab
  • Contact Base Material: Brass
  • Housing Material: Matte
  • Housing Color: natural
  • Orientation: straight
  • Number of positions: 40
  • Operating Temperature Range: -40 – 125 °C [-40 – 257 °F]
  • Insulation Resistance: 2 MΩ
  • Centerline (Pitch): 0.8 mm
  • PCB Mount Retention: Without
  • Sealable: No
  • Contact Layout: Inline
Technical specifications
Colour natural
contact surface gold-plated
Rated current 500 mA
Grid 0.8 mm
Connection plating tin-plated
Pin number 40 pole
Version pin header
Additional parts equipped
Orientation straight
Connection SMD
Contact type pin
Rated voltage 100 V
Number of rows 2
Logistics
Country of origin CZ
Customs tariff number 85366930
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
