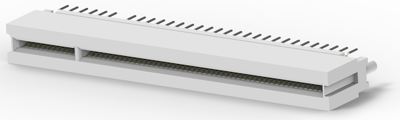

PCI and PCI Express Connectors, 5145154-8, AMP
Connector System: Board-to-Board, Connector & Contact Terminates To: Printed Circuit Board, Number of PCB Mount Retention Features: 2, Number of Positions: 120, PCB Mount Orientation: Vertical, Ejector: Without, Operating Voltage: 203 VAC, Bus Width: 32 Bit, Contact Base Material: Phosphor Bronze, Contact Mating Area Plating Material Thickness: , Contact Current Rating (Max): 1.1 A, Termination Method to Printed Circuit Board: Through Hole - Solder, Termination Post & Tail Length: 3.18 mm, Connector Mounting Type: Board Mount, Housing Material: High Temperature Thermoplastic, Centerline (Pitch): 1.27 mm, Housing Color: Natural, PCB Thickness (Accepted): 1.57 mm, Connector Height: 13.97 mm, Connector Width: 8.8 mm, Operating Temperature Range: -55 – 85 °C, Circuit Application: Signal, Bus Type: PCI, Packaging Method: Box & Carton
