5120789-1 | AMP

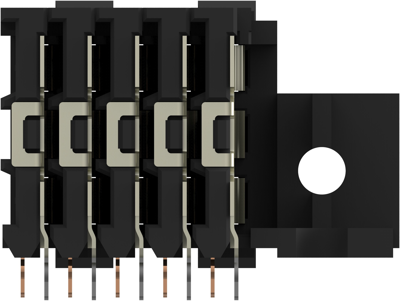

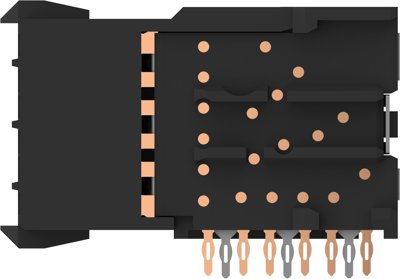

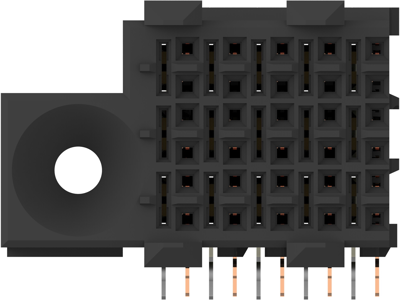

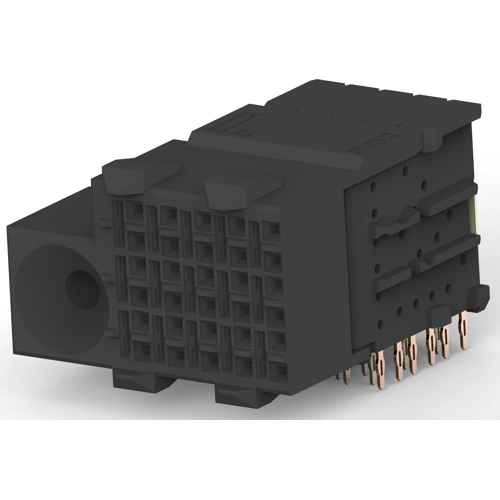

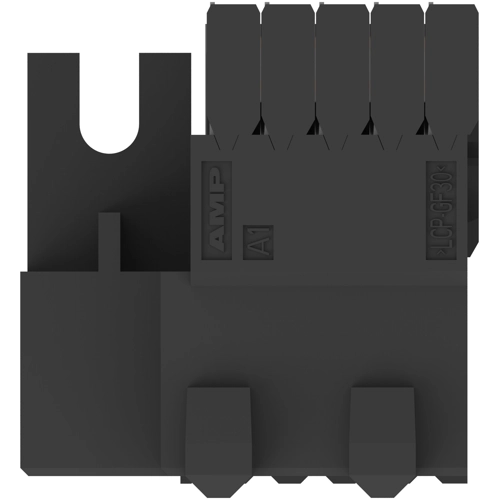

Socket header, 30 pole, pitch 2 mm, angled, black, 5120789-1
Unit Price (€ / pc.)
19.3256 € *
Available in 5 Days: 5,749 pcs. - if ordered today
PCB Connection System, 5120789-1, AMP
Board-to-Board, Printed Circuit Board, Right Angle, 30 Position
Technical Data
- Connector Mounting Type: Board Mount
- Contact Type: Female
- Contact Base Material: Copper Alloy
- Housing Material: Polyester - GF
- Housing Color: black
- Orientation: angled
- Number of positions: 30
- Operating Temperature Range: -65 – 105 °C [-85 – 221 °F]
- Rated current: 1.15 A
- Centerline (Pitch): 2 mm
- Row-to-Row Spacing: 2 mm [0.078 in]
- PCB Mount Retention: With
- Sealable: No
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection plating | tin-plated | |
| Connection | press-fit | |
| Colour | black | |
| Additional parts | equipped | |
| Pin number | 30 pole | |
| Contact type | socket | |
| Orientation | angled | |
| Rated voltage | 250 V | |
| contact surface | tin-plated | |
| Version | socket header | |
| Rated current | 1.15 A | |
| Number of rows | 6 | |
| Grid | 2 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | MX |
| Customs tariff number | 85366930 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
