5111448-4 | AMP

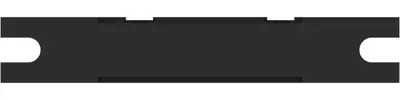

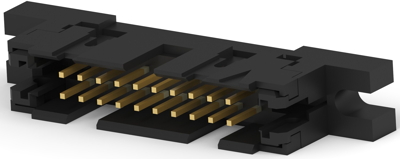

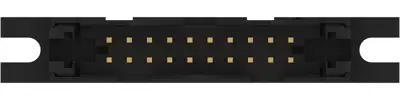

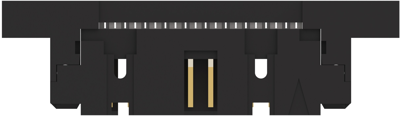

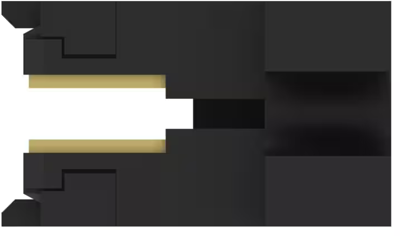

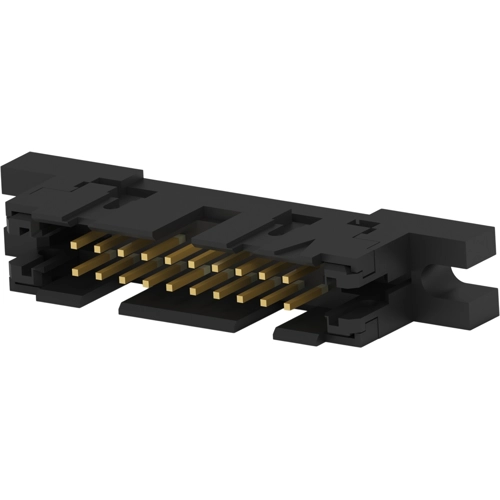

Pin header, 20 pole, pitch 2.54 mm, straight, black, 5111448-4
Unit Price (€ / pc.)
11.8762 € *
Available in 5 Days: 2,234 pcs. - if ordered today
Total Price:
11.88 € *
Price list
Quantity
Price per unit*
1 pcs.
11.8762 €
10 pcs.
11.0313 €
25 pcs.
10.2935 €
50 pcs.
9.3534 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB Connection System, 5111448-4, AMP
Wire-to-Wire, Wire & Cable, 20 Position
Technical Data
- Connector Mounting Type: Cable Mount (Free-Hanging)
- Contact Type: Male
- Contact Base Material: Phosphor Bronze
- Housing Color: black
- Number of positions: 20
- Operating Temperature Range: -65 – 105 °C [-85 – 221 °F]
- Insulation Resistance: 5000 MΩ
- Centerline (Pitch): 2.54 mm
- Row-to-Row Spacing: 2 mm [0.1 in]
- PCB Mount Retention: Without
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | pin header | |
| contact surface | tin-plated | |
| Connection plating | tin-plated | |
| Grid | 2.54 mm | |
| Contact type | pin | |
| Rated voltage | 250 V | |
| Additional parts | equipped | |
| Orientation | straight | |
| Colour | black | |
| Rated current | 1 A | |
| Connection | IDC connection | |
| Pin number | 20 pole | |
| Number of rows | 2 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366930 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
