5104340-1 | AMP

Pin header, 10 pole, pitch 2.54 mm, angled, black, 5104340-1

Order No.: 36P5154
EAN: 4099889941388
MPN:
5104340-1
Series: AMP-LATCH
5104340-1 AMP PCB Connection Systems

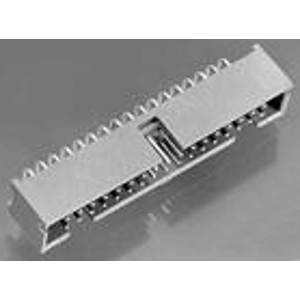

Image may differ
Unit Price (€ / pc.)
2.0825 € *
Standard delivery time from the manufacturer is: 12 Weeks
Total Price:
1,822.19 € *
*incl. VAT plus shipping costs
Subject to prior sale
875 pcs.
2.0825 €

PCB Connection System, 5104340-1, AMP

Wire-to-Board, Printed Circuit Board, Right Angle, 10 Position

Technical Data

  • Connector Mounting Type: Board Mount
  • Contact Type: Male
  • Contact Base Material: Phosphor Bronze
  • Housing Material: Glass Filled PPA
  • Housing Color: black
  • Orientation: angled
  • Number of positions: 10
  • Operating Temperature Range: -65 – 105 °C [-85 – 221 °F]
  • Insulation Resistance: 5000 MΩ
  • Centerline (Pitch): 2.54 mm
  • Row-to-Row Spacing: 2.54 mm [0.1 in]
  • PCB Mount Retention: With
Technical specifications
Filter Property Value
Colour black
Type of locking Yes
contact surface gold-plated
Rated current 1 A
Grid 2.54 mm
Connection plating tin-plated
Pin number 10 pole
Version pin header
Additional parts equipped
Orientation angled
Connection solder pin
Contact type pin
Rated voltage 250 V
Number of rows 2
Logistics
Property Value
Country of origin CZ
Customs tariff number 85366990
Compliance
Property Value
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
