5103310-6 | AMP

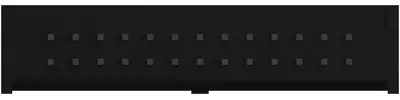

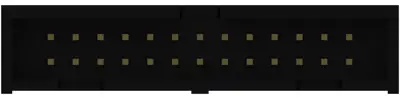

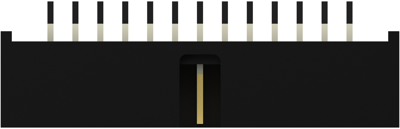

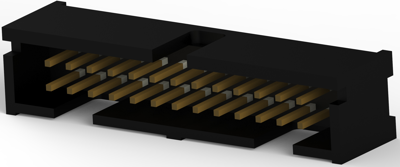

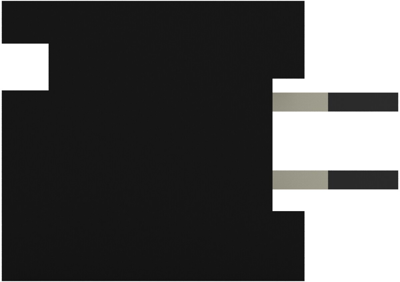

Pin header, 26 pole, pitch 2.54 mm, angled, black, 5103310-6
Unit Price (€ / pc.)
5.3431 € *
Available in 5 Days: 1,260 pcs. - if ordered today
PCB Connection System, 5103310-6, AMP
Wire-to-Board, Printed Circuit Board, Right Angle, 26 Position
Technical Data
- Connector Mounting Type: Board Mount
- Contact Type: Male
- Contact Base Material: Copper Alloy
- Housing Material: Glass Filled Nylon/PBT
- Housing Color: black
- Orientation: angled
- Number of positions: 26
- Operating Temperature Range: -65 – 105 °C [-85 – 221 °F]
- Insulation Resistance: 5000 MΩ
- Centerline (Pitch): 2.54 mm
- Row-to-Row Spacing: 2.54 mm [0.1 in]
- PCB Mount Retention: Without
Technical specifications
| Number of rows | 2 | |
| Grid | 2.54 mm | |
| Orientation | angled | |
| Pin number | 26 pole | |
| Connection | solder pin | |
| Type of locking | Yes | |
| Colour | black | |
| Rated current | 1 A | |
| Additional parts | equipped | |
| Contact type | pin | |
| Version | pin header | |
| Connection plating | tin-plated | |
| contact surface | gold-plated | |
| Rated voltage | 250 V |
Download
Logistics
| Customs tariff number | 85366990 |
| Country of origin | US |
Compliance
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
