5102321-7 | AMP

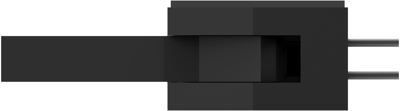

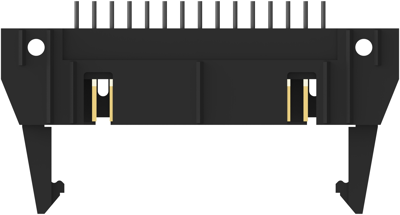

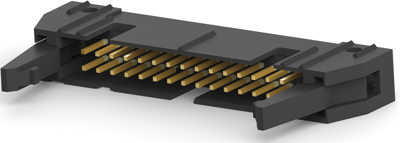

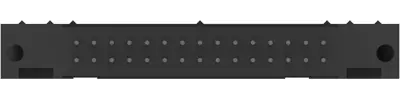

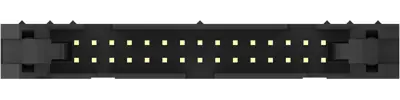

Pin header, 30 pole, pitch 2.54 mm, straight, black, 5102321-7
Unit Price (€ / pc.)
9.52 € *
Available in 5 Days: 380 pcs. - if ordered today
PCB Connection System, 5102321-7, AMP
Wire-to-Board, Printed Circuit Board, Vertical, 30 Position
Technical Data
- Connector Mounting Type: Board Mount
- Contact Type: Male
- Contact Base Material: Copper Alloy
- Housing Material: Glass Filled Nylon/Polyester
- Housing Color: black
- Orientation: straight
- Number of positions: 30
- Operating Temperature Range: -65 – 105 °C [-85 – 221 °F]
- Insulation Resistance: 5000 MΩ
- Centerline (Pitch): 2.54 mm
- Row-to-Row Spacing: 2.54 mm [0.1 in]
- PCB Mount Retention: Without
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated current | 1 A | |
| Additional parts | equipped | |
| contact surface | gold-plated | |
| Version | pin header | |
| Orientation | straight | |
| Connection plating | tin-plated | |
| Grid | 2.54 mm | |
| Type of locking | Yes | |
| Number of rows | 2 | |
| Contact type | pin | |
| Colour | black | |
| Pin number | 30 pole | |
| Connection | solder pin | |
| Rated voltage | 250 V |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | IT |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
