5102160-3 | AMP

Pin header, 16 pole, pitch 2.54 mm, angled, black, 5102160-3

Order No.: 36P5747
EAN: 4099889945805
MPN:
5102160-3
Series: AMP-LATCH

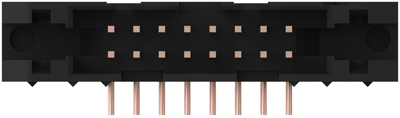

5102160-3 AMP PCB Connection Systems Image 1

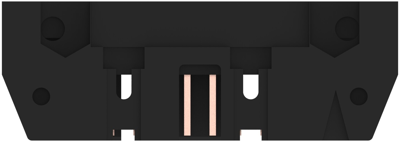

5102160-3 AMP PCB Connection Systems Image 2

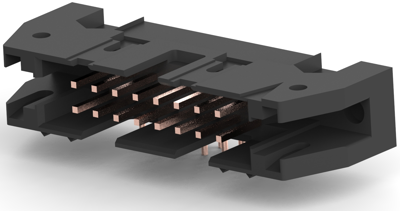

5102160-3 AMP PCB Connection Systems Image 3
5102160-3 AMP PCB Connection Systems Image 4
5102160-3 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
3.9389 € *
Available in 5 Days: 852 pcs. - if ordered today
Total Price:
3.94 € *
Price list
Quantity
Price per unit*
1 pcs.
3.9389 €
10 pcs.
3.6295 €
50 pcs.
3.2606 €
100 pcs.
2.9393 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB Connection System, 5102160-3, AMP

Wire-to-Board, Printed Circuit Board, Right Angle, 16 Position

Technical Data

  • Connector Mounting Type: Board Mount
  • Contact Type: Male
  • Contact Base Material: Phosphor Bronze
  • Housing Material: Nylon - GF
  • Housing Color: black
  • Orientation: angled
  • Number of positions: 16
  • Operating Temperature Range: -65 – 105 °C [-85 – 221 °F]
  • Insulation Resistance: 1000 - 5000 MΩ
  • Centerline (Pitch): 2.54 mm
  • Row-to-Row Spacing: 2.54 mm [0.1 in]
  • PCB Mount Retention: Without
Technical specifications
Colour black
Type of locking Yes
contact surface gold-plated
Rated current 1 A
Grid 2.54 mm
Connection plating tin-plated
Pin number 16 pole
Version pin header
Additional parts equipped
Orientation angled
Connection solder pin
Contact type pin
Rated voltage 250 V
Number of rows 2
Logistics
Country of origin IT
Customs tariff number 85366990
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
