5102154-1 | AMP

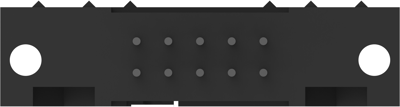

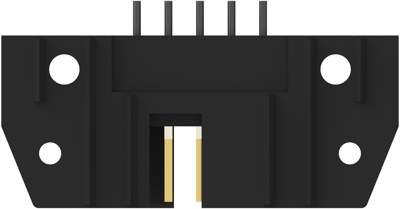

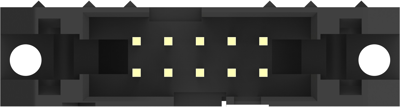

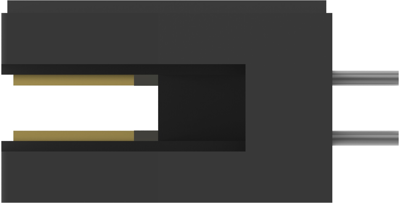

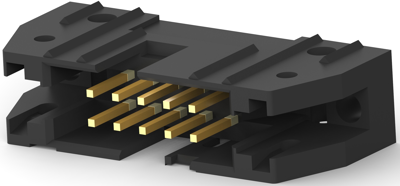

Pin header, 10 pole, pitch 2.54 mm, straight, black, 5102154-1
Unit Price (€ / pc.)
2.4038 € *
Available in 5 Days: 540 pcs. - if ordered today
Total Price:
2.40 € *
Price list
Quantity
Price per unit*
1 pcs.
2.4038 €
10 pcs.
2.2372 €
25 pcs.
2.0825 €
50 pcs.
1.8921 €
*incl. VAT plus shipping costs
Subject to prior sale
Pin headers with straight solder pins and snap-in polarity fins, type ..-5102154.
With polarity fins, made of thermoplastic, black, UL 94 V-0; Operating current: max. 1.0 A. Dielectric strength: 500 VAC. Operating temperatures: -55 to +105 °C. Contacts: gold-plated over nickel and palladium. Grid: 2.54 x 2.54 mm. Standards: DIN 41651, DIN 41611, UL, MiL-C-83503.
Technical attributes (type, number of poles, dimensions A/B/C/D): 0-5102154-1, 10-pole, A 17.78 mm/B 27.94 mm/C 32 mm/D 21.84 mm
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 2.54 mm | |
| Pin number | 10 pole | |
| Colour | black | |
| Connection plating | tin-plated | |
| Contact type | pin | |
| Rated current | 1 A | |
| Version | pin header | |
| Connection | PCB connection | |
| Additional parts | equipped | |
| Number of rows | 2 | |
| Rated voltage | 250 V | |
| contact surface | gold-plated | |
| Orientation | straight | |
| Type of locking | Yes |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | US |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
