5084616-5 | AMP

Socket header, 120 pole, pitch 0.8 mm, straight, natural, 5084616-5

Order No.: 36P4833
EAN: 4099889940930
MPN:
5084616-5
Series: 0.8mm FH

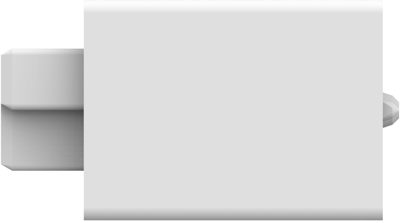

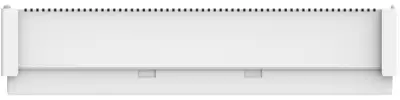

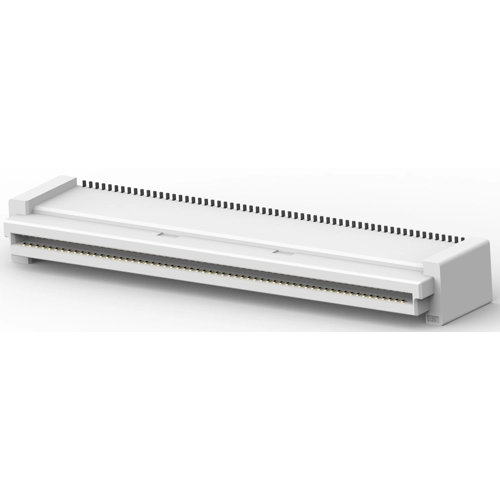

5084616-5 AMP PCB Connection Systems Image 1
5084616-5 AMP PCB Connection Systems Image 2
5084616-5 AMP PCB Connection Systems Image 3
5084616-5 AMP PCB Connection Systems Image 4
5084616-5 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
12.5188 € *
Available in 5 Days: 5,600 pcs. - if ordered today
Total Price:
2,503.76 € *
Price list
Quantity
Price per unit*
200 pcs.
12.5188 €
400 pcs.
11.3883 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB Connection System, 5084616-5, AMP

Board-to-Board, Printed Circuit Board, Vertical, 120 Position

Technical Data

  • Connector Mounting Type: Board Mount
  • Contact Type: Female
  • Contact Base Material: Copper Alloy
  • Housing Material: Matte
  • Housing Color: natural
  • Orientation: straight
  • Number of positions: 120
  • Operating Temperature Range: -40 – 125 °C [-40 – 257 °F]
  • Insulation Resistance: 2 MΩ
  • Centerline (Pitch): 0.8 mm
  • PCB Mount Retention: Without
  • Sealable: No
  • Contact Layout: Inline
Technical specifications
Colour natural
contact surface gold-plated
Rated current 500 mA
Grid 0.8 mm
Connection plating tin-plated
Pin number 120 pole
Version socket header
Additional parts equipped
Orientation straight
Connection SMD
Contact type socket
Rated voltage 100 V
Number of rows 2
Logistics
Country of origin DE
Customs tariff number 85366930
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
