5-826938-0 | AMP
Pin header, 50 pole, pitch 2.54 mm, straight, green, 5-826938-0
Unit Price (€ / pc.)
3.5700 € *
Available: 190 pcs.
Available in 5 Days: 2,071 pcs. - if ordered today
Total Price:
3.57 € *
Price list
Quantity
Price per unit*
1 pcs.
3.5700 €
10 pcs.
3.3201 €
25 pcs.
3.0940 €
50 pcs.
2.8084 €
*incl. VAT plus shipping costs
Subject to prior sale
Single-row pin headers for PCB mounting, type TE Connectivity/AMP Modu II ..-0826.
With 2.54 mm grid. For Modu IV socket headers without interlock. Insulated housing made of thermoplastic polyester, green, compliant with UL 94 V-0; Contact types: tin bronze contacts, 0.8 µ selective gold-plated on nickel primer (dimension F) and tinned soldering side or brass contacts with tinned contact and solder area. The number of contacts can be reduced as required by breaking them off.

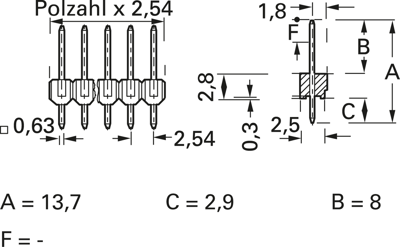

Tinned, pin length B 8.0 mm, type ..-0826.
Tinned pins (2.0 µm tin over 1.3 µm Ni); Dimension A: 13.7 mm. Dimension C: 2.9 mm.
Type: 5-0826938-0, 50-pole
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Additional parts | equipped | |
| Orientation | straight | |
| Pin number | 50 pole | |
| Connection | PCB connection | |
| Rated current | 5 A | |
| Breakable | Yes | |
| Colour | green | |
| Type of locking | Yes | |
| Grid | 2.54 mm | |
| Number of rows | 1 | |
| contact surface | tin-plated | |
| Connection plating | tin-plated | |
| Version | pin header | |
| Contact type | pin |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366930 |
| Country of origin | US |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
