5-826936-0 | AMP
Pin header, 50 pole, pitch 2.54 mm, straight, green, 5-826936-0
Unit Price (€ / pc.)
2.8560 € *
Available: 237 pcs.
Available in 5 Days: 1,404 pcs. - if ordered today
Total Price:
2.86 € *
Price list
Quantity
Price per unit*
1 pcs.
2.8560 €
10 pcs.
2.6537 €
25 pcs.
2.4752 €
50 pcs.
2.2491 €
*incl. VAT plus shipping costs
Subject to prior sale
Single-row pin headers for PCB mounting, type TE Connectivity/AMP Modu II ..-0826.
With 2.54 mm grid. For Modu IV socket headers without interlock. Insulated housing made of thermoplastic polyester, green, compliant with UL 94 V-0; Contact types: tin bronze contacts, 0.8 µ selective gold-plated on nickel primer (dimension F) and tinned soldering side or brass contacts with tinned contact and solder area. The number of contacts can be reduced as required by breaking them off.

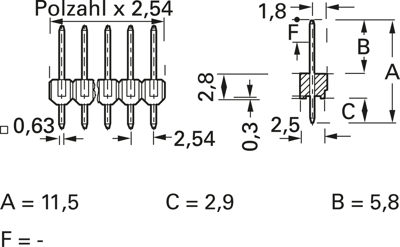

Tinned, pin length B 5.8 mm, type ..-0826.
Tinned pins (2.0 µm tin over 1.3 µm Ni); Dimension A: 11.5 mm. Dimension C: 2.9 mm.
Type: 5-0826936-0, 50-pole
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | green | |
| Additional parts | equipped | |
| Number of rows | 1 | |
| Connection | PCB connection | |
| Orientation | straight | |
| Type of locking | Yes | |
| contact surface | tin-plated | |
| Breakable | Yes | |
| Version | pin header | |
| Connection plating | tin-plated | |
| Pin number | 50 pole | |
| Contact type | pin | |
| Grid | 2.54 mm | |
| Rated current | 5 A |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366930 |
| Country of origin | US |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
