5-826926-0 | AMP

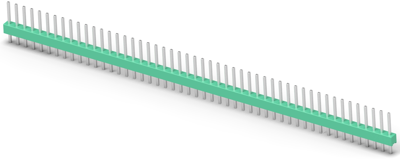

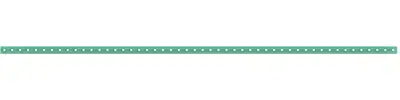

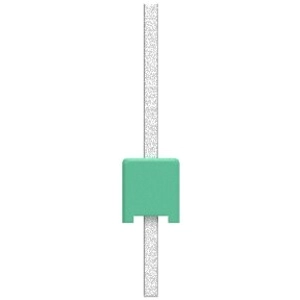

Pin header, 50 pole, pitch 2.54 mm, straight, green, 5-826926-0
Unit Price (€ / pc.)
5.6763 € *
Available: 318 pcs.
Available in 5 Days: 2,228 pcs. - if ordered today
Total Price:
5.68 € *
Price list
Quantity
Price per unit*
1 pcs.
5.6763 €
10 pcs.
5.2717 €
25 pcs.
4.9147 €
50 pcs.
4.4744 €
*incl. VAT plus shipping costs
Subject to prior sale
Single-row pin headers for PCB mounting, type TE Connectivity/AMP Modu II ..-0826.
With 2.54 mm grid. For Modu IV socket headers without interlock. Insulated housing made of thermoplastic polyester, green, compliant with UL 94 V-0; Contact types: tin bronze contacts, 0.8 µ selective gold-plated on nickel primer (dimension F) and tinned soldering side or brass contacts with tinned contact and solder area. The number of contacts can be reduced as required by breaking them off.
Tinned, pin length B 6.7 mm, type ..-0826.
Tinned pins (2.0 µm tin over 1.3 µm Ni); Dimension A: 12.4 mm. Dimension C: 2.9 mm.
Type: 5-0826926-0, 50-pole
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Type of locking | Yes | |
| Version | pin header | |
| Connection | PCB connection | |
| Number of rows | 1 | |
| Contact type | pin | |
| Additional parts | equipped | |
| Connection plating | tin-plated | |
| contact surface | tin-plated | |
| Pin number | 50 pole | |
| Grid | 2.54 mm | |
| Breakable | Yes | |
| Colour | green | |
| Rated current | 5 A | |
| Orientation | straight |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85366930 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
