5-826656-0 | AMP

Pin header, 100 pole, pitch 2.54 mm, straight, green, 5-826656-0

Order No.: 56F6761
EAN: 4099891001780
MPN:
5-826656-0
5-0826656-0
Series: AMPMODU

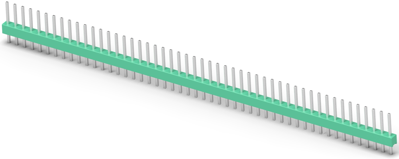

5-826656-0 AMP PCB Connection Systems Image 1

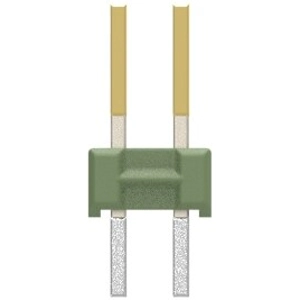

5-826656-0 AMP PCB Connection Systems Image 2
5-826656-0 AMP PCB Connection Systems Image 3
5-826656-0 AMP PCB Connection Systems Image 4
5-826656-0 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
13.1138 € *
Available: 538 pcs.
Available in 5 Days: 146 pcs. - if ordered today
Total Price:
13.11 € *
Price list
Quantity
Price per unit*
1 pcs.
13.1138 €
10 pcs.
12.1737 €
25 pcs.
11.3645 €
50 pcs.
10.3292 €
*incl. VAT plus shipping costs
Subject to prior sale

Dual-row pin headers, straight, type TE Connectivity/AMP Modu II.

With 2.54 mm grid; Housing: polyester, green, compliant with UL 94 V-0, self-extinguishing. Contacts: tinned (2.5 µm tin over Ni) or gold-plated (0.8 µm Au over Ni). Dimension C: 3.2 mm. The number of contacts can be reduced as required by breaking them off.

Gold-plated, pin length B 5.8 mm, type ..-0826.

Gold-plated pins in the contact area (0.8 µm Au over 1.3 µm Ni); Gold-plated zone (dimension F): 4.4 mm, tinned solder area (2.5 µm tin over 1.3 µm Ni). Dimension A: 11.5 mm. Dimension C: 2.9 mm.

Type: 5-0826656-0, 2 x 50-pole

Technical specifications
Filter Property Value
Orientation straight
Pin number 100 pole
Version pin header
Colour green
Breakable Yes
Grid 2.54 mm
Rated current 5 A
Type of locking Yes
Contact type pin
Number of rows 2
Connection PCB connection
Connection plating tin-plated
contact surface gold-plated
Additional parts equipped
Logistics
Property Value
Country of origin CN
Customs tariff number 85366930
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
