5-826646-0 | AMP

Pin header, 50 pole, pitch 2.54 mm, straight, green, 5-826646-0

Order No.: 59F2122
EAN: 4099891004958
MPN:
5-826646-0
5-0826646-0
Series: AMPMODU

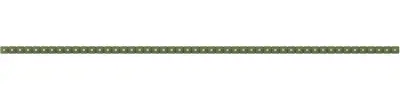

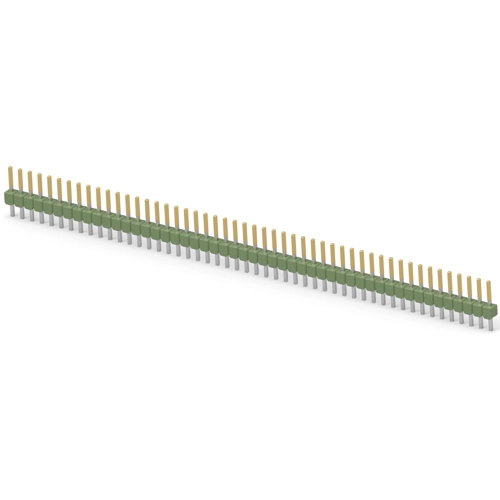

5-826646-0 AMP PCB Connection Systems Image 1
5-826646-0 AMP PCB Connection Systems Image 2
5-826646-0 AMP PCB Connection Systems Image 3
5-826646-0 AMP PCB Connection Systems Image 4
5-826646-0 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
6.3665 € *
Available: 115 pcs.
Available in 5 Days: 2,423 pcs. - if ordered today
Total Price:
6.37 € *
Price list
Quantity
Price per unit*
1 pcs.
6.3665 €
10 pcs.
5.6049 €
100 pcs.
4.9266 €
250 pcs.
4.7243 €
1000 pcs.
4.4030 €
*incl. VAT plus shipping costs
Subject to prior sale

Single-row pin headers for PCB mounting, type TE Connectivity/AMP Modu II ..-0826.

With 2.54 mm grid. For Modu IV socket headers without interlock. Insulated housing made of thermoplastic polyester, green, compliant with UL 94 V-0; Contact types: tin bronze contacts, 0.8 µ selective gold-plated on nickel primer (dimension F) and tinned soldering side or brass contacts with tinned contact and solder area. The number of contacts can be reduced as required by breaking them off.

Gold-plated, pin length B 5.8 mm, type ..-0826.

With straight solder pins. Pins gold-plated in the contact area (0.8 µm Au over 1.3 µm Ni), tinned in the solder area (2.5 µm Sn over 1.3 µm Ni); Dimension A: 11.5 mm. Dimension C: 2.9 mm. Dimension F: 4.4 mm.

Type: 5-0826646-0, 50-pole

Technical specifications
Filter Property Value
Number of rows 1
Grid 2.54 mm
contact surface gold-plated
Connection PCB connection
Version pin header
Connection plating tin-plated
Contact type pin
Additional parts equipped
Type of locking Yes
Orientation straight
Breakable Yes
Rated current 5 A
Colour green
Pin number 50 pole
Logistics
Property Value
Customs tariff number 85366930
Country of origin US
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
