5-826634-0 | AMP

Pin header, 100 pole, pitch 2.54 mm, straight, green, 5-826634-0

Order No.: 56F6252
EAN: 4099891001001
MPN:
5-826634-0
5-0826634-0
Series: AMPMODU

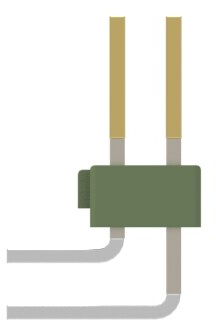

5-826634-0 AMP PCB Connection Systems Image 1

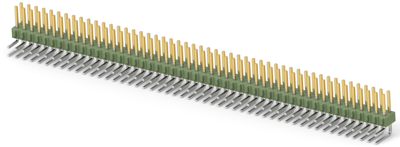

5-826634-0 AMP PCB Connection Systems Image 2
5-826634-0 AMP PCB Connection Systems Image 3
5-826634-0 AMP PCB Connection Systems Image 4
5-826634-0 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
10.4601 € *
Available: 41 pcs.
Leadtime: 17 Weeks **
Total Price:
10.46 € *
Price list
Quantity
Price per unit*
1 pcs.
10.4601 €
10 pcs.
9.9365 €
50 pcs.
9.3415 €
100 pcs.
8.5918 €
*incl. VAT plus shipping costs
**Subject to prior sale

Dual-row pin headers, angled, type TE Connectivity/AMP Modu II.

With 2.54 mm grid; Housing: polyester, green, compliant with UL 94 V-0, self-extinguishing. The number of contacts can be reduced as required by breaking them off.

Gold-plated, pin length B 6.7 mm, type ..-0826.

Gold-plated pins in the contact area (0.8 µm gold over 1.3 µm Ni); Gold-plated zone (dimension F): 5.5 mm, tinned soldering area (2.5 µm tin over 1.3 µm Ni). Dimension C: 2.9 mm. Dimension D: 1.3 mm.

Type: 5-0826634-0, 2 x 50-pole

Technical specifications
Connection Leiterplattenanschluss
Connection plating verzinnt
Number of rows 2
Version Stiftleiste
Additional parts bestückt
Breakable Yes
Colour grün
Contact type Stift
contact surface vergoldet
Rated current 5 A
Orientation gerade
Pin number 100-polig
Grid 2.54 mm
Type of locking Ja
Logistics
Country of origin US
Customs tariff number 85366930
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
